Through Hollow Encoder

POSITAL - FRABA Inc.

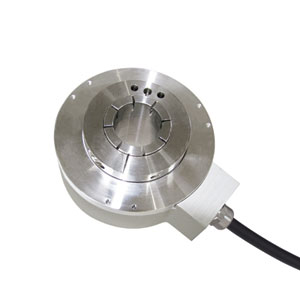

Image of Through Hollow Encoder

POSITAL’s through hollow encoders are available for shaft diameters ranging from 3/8 inch (9.5 mm) to 1-3/4 inch (44.5 mm). The smaller units (up to 14 mm shaft opening) have an external diameter of 2-1/4 inch (58 mm), while the larger units (5/8 inch to 1-3/4 inch shaft size) have external diameters of 3 or 4 inches (77 or 100 mm). Available resolutions for these devices extend from 360 PPR to 4096 PPR (pulses per revolution).

All through hollow encoders have rugged aluminum housings and environmental protection rated at IP65, ensuring longevity and high levels of operational safety. All variants are available with a variety of communications interfaces, including RS422 (TTL) 5V or 11-30V and Push-Pull (HTL, 5-30V). Connection options include built-in cables or MIL-type connectors.

POSITAL’s through hollow encoders are an attractive option for machine builders and system integrators who are looking for accurate motion feedback devices that are easy to build into new or existing designs.
