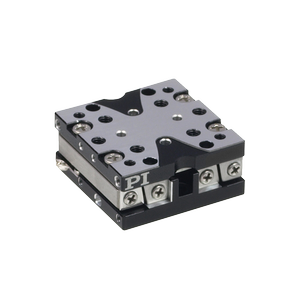

Miniature Piezo Positioning Stage
The Q-522 series of economical mini positioning stages are equipped with a compact piezo stick-slop inertia motor. Featuring dimensions from 22x22x10mm, the Q-522 is one of the smallest precision linear stages available on the market, offered with travel ranges of 1/4", 1/2" and 1".
- Piezo Inertial Drive (Stick-slip)
- Closed Loop Optical Encoder Option
- Self Locking with no Current Draw
- Vacuum Option
- 1/4", 1/2" and 1" Travel
- Velocity to 10mm/sec
- From 22x22x10mm
