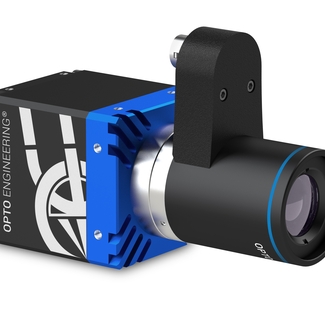

Industrial GigE vision PoE cameras with liquid lens control
Model: ITALA G.EL series
ITALA G.EL is a series of GigE Vision industrial cameras with integrated liquid lens control designed and built in Italy by Opto Engineering®.
ITALA G.EL is a series of GigE Vision industrial cameras with integrated liquid lens control designed and built in Italy by Opto Engineering®.
The ITALA G.EL series integrates high quality Sony Pregius and Pregius S CMOS sensors ranging from the most commonly used II generation with 3.45 µm pixels to the most recent IV generation with 2.74 µm pixels.
Thanks to a built-in driver, the ITALA G.EL cameras allow to simplify the integration of Optotune® liquid lenses avoiding an external dedicated hardware.
KEY ADVANTAGES
- Built-in liquid lens control
- No external driver needed
- Made in Italy
- Cameras designed and manufactured in Italy by Opto Engineering®.
- Rugged Design
- Aluminum body & steel lens mount.
- Shock & Vibration certified.
- Wide temperature range.
- High processing capability
- Large on-board image buffer
Never miss a frame and take advantage of burst mode acquisition. - High performance FPGA
Additional on-board processing functions can be easily implemented.
- Large on-board image buffer
- Maximum connectivity
- Isolated PoE supply
- Simplified cable harness with data and power over a single cable.
- Broad Range of I/Os
- Industry standard Hirose 12 pin connector for a broad range of I/Os and special functions.
- Serial Communication
- Combo RS232/485 transceiver for maximum flexibility.
- Top Quality Service
- A 5-years warranty
- Dedicated support for the integration directly from the manufacturer
- Excellent price quality/ratio
Other Products from Opto Engineering S.P.A.

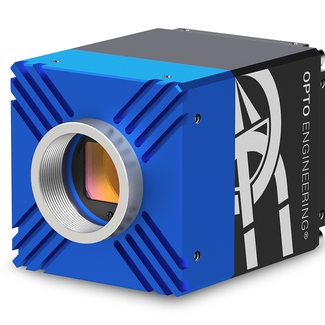

Industrial 10GigE vision PoE cameras
