The Karbon 802 rugged computer features 12th Gen Intel Core processing, dual ModBay expansion and optional hot swap storage.
ADVANCED PROCESSING PERFORMANCE
If your project demands powerful, scalable, and efficient processing, the Karbon 802 has you covered. Powered by 12th Gen Intel Core processing (formerly known as Alder Lake), Karbon 802 leverages Intel's unique hybrid core architecture, which adapts to your needs by directing the right thread to the right core. In addition to its advanced processing, Karbon 802's optional ECC memory, 4G and Wi-Fi compatibility (Wi-Fi 6e support coming soon) give you the capabilities you need now, and set your project up for success well into the future.
Looking for even more options? Explore the entire Karbon 800 Series.
ENGINEERED FOR THE EDGE
The Karbon 802 was engineered for efficient passive cooling, meaning there are no openings in the case to let in dust, debris or contaminants. The system features 12 to 48 V DC power input, an operating temperature range of -40 to 70°C, has been tested to MIL-STD-810 shock and vibration standards and has also been tested for reliable operation in industrial, medical, automotive, rail and maritime applications. Available wall, DIN rail and vibration isolating mounting kits give you a range of options for system installation. Wherever the edge of your project takes you, the Karbon 802 is engineered to perform.
CONNECT TO ANYTHING, ANYWHERE

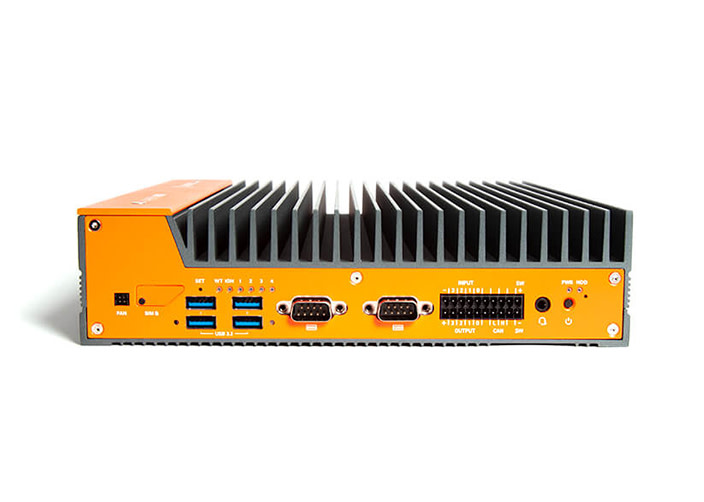

The installation flexibility of the Karbon 802 is backed up by its complement of industrial I/O. The system can be configured with up to 14x LAN (6x 2.5GbE, 8x 1GbE), and PoE+ support on up to 10x of those ports (2x onboard, 8x ModBay), and features Intel vPro support for remote out-of-band (OOB) management of the system. Other connectivity includes dual DisplayPorts, 2x COM, 6x USB 3.2 Gen 2, dual SIM slots and integrated 18-pin GPIO (16-bit DIO, CAN bus, External Switch). A pair of our unique ModBay I/O expansion slots let you further customize the system for your particular project with additional PoE+, USB 3, COM, 10 GbE LAN or M12 LAN ports. Automotive power input and a customer-programmable Microcontroller Unit (MCU) for ignition timing control, further reinforce the installation freedom the Karbon 802 provides, and puts you in command of how and where your data is captured and processed.
Other Products from OnLogic
OnLogic AX301 Single CPU 3U Edge Server w/ SATA Storage
The OnLogic AX301 is a high-performance 3U edge server designed for demanding workloads. With powerful Intel Xeon processing and flexible deployment options.

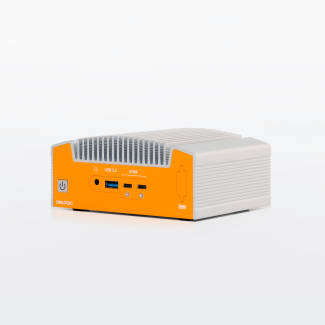

OnLogic ML100G-42 Fanless AMD Ryzen 8000 Industrial NUC
