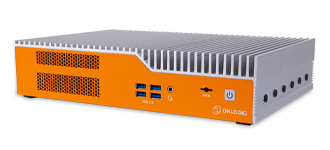

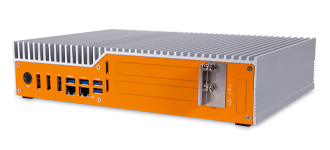

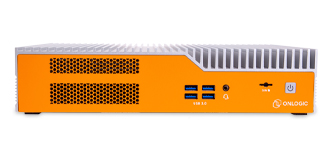

OnLogic Helix 600 Intel Comet Lake Expanded Industrial Edge Computer

THE POWER TO OUTPERFORM

We designed Helix 600 to let you choose the mix of performance and features that best suit your project. Powered by Intel 10th Gen Comet Lake processing, including the latest Core i9 CPU, Helix 600 can accommodate up to 64 GB of RAM (contact us for more details), has room for dual SSDs (including NVMe options) and features available VPU accelerators, including Intel Movidius and Google Coral. Onboard PCIe x16 expansion lets you select from a range of graphics cards, network cards and additional storage options. Looking for many of the same features in a smaller footprint? Check out the Helix 500.

GO-ANYWHERE, DO ANYTHING

Helix 600 puts you in control of how, and more importantly where, your data is collected and processed. Its fanless construction and 0-50°C operating temperature range allow Helix 600 to operate 24/7 right where you need powerful computing. The system is NRTL safety listed to IEC 62368-1 and comes complete with a CB scheme. EMC compliance testing covers 60601-1-2 4th edition which includes immunity testing to 15kV ESD, 1kV EFT, and 30A/m magnetic immunity, yielding impressive level A results - greater than 2x the protection of standard IT equipment. EMC testing also includes FCC and CE. Helix 600 combines the power of a desktop computer with the flexibility of a PLC, the tolerance of a medical device and the connectivity of an edge gateway, letting you focus on the success of your project, not the reliability of your hardware. When configured with a GPU the hybrid fanless design of the HX600 maintains the fanless, solid-state reliability of the core system while fans actively cool the GPU in a separate compartment.

THE FEATURES AND CONNECTIVITY YOU NEED

With triple independent display support, dual Gb LAN with vPro/AMT (depending on the processor selected), and wide-input 12-24V power with voltage protection, Helix 600 puts you in control of how your information is collected and displayed. The system's expansion capabilities make it ideal for advanced industrial control applications, manufacturing automation, machine vision or any edge computing project that demands reliable performance and powerful processing in challenging or space constrained environments.
