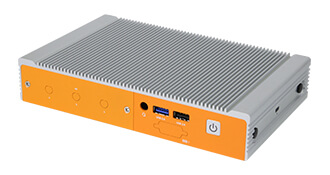

OnLogic Helix 310 Intel Elkhart Lake Industrial Edge Computer

BUILT FOR THE EDGE WITH INTEL ELKHART LAKE

Like all of the systems in the innovative Helix Series, the Helix 310 was built to thrive at the edge. Powered by the Dual-Core Intel Celeron N6211, or Quad-Core Intel Pentium J6426 processors, which have been specifically engineered for IoT applications, Helix 310 offers a unique combination of features, power and connectivity, making it an ideal Industrial IoT gateway, edge device or embedded controller.

SLIM PROFILE, WIDE APPLICATION POSSIBILITIES

At less than 1.5" tall, the Helix 310 can be installed in almost any industrial application, with support for DIN, and wall mounting. Sensitive internal components are mechanically protected from dust, debris, chemicals, and moisture with OnLogic's integrated Hardshell™ technology. Meanwhile, the absence of any moving parts dramatically improves the lifespan and reliability of the system. Its advanced industrial design includes a filtered DC input power supply with a 12~24V range and the system is rated for reliable operation in temperatures ranging from 0 to 50°C. All of the I/O has been immunity tested to both the EN 55035 for IT equipment and to 60601-1 4th edition Medical immunity - including the 15kV ESD & 10V/m RF immunity tests. Medical immunity protects the computer at a level almost 2x and in some cases up to 30x more than the CE computer standard required limits. The HX310 is currently being safety listed under UL/IEC 62368-1. When used as communication equipment, this unique computer will integrate seamlessly into UL 61010 (former UL 508) applications.

INCREDIBLE STANDARD CONNECTIVITY WITH ROOM TO GROW

Connectivity is key for any IoT project, which is why the Helix 310 features a well-equipped I/O coastline and available expansion to further customize your interface options. Standard I/O includes 3x USB 3.2 & 3x USB 2.0 ports, 1x DB9 (RS-232/422) optionally configurable as COM (CAN can be configured on request), 3x DisplayPorts, 1x 1GbE LAN port (2x LAN available when equipped with a Pentium CPU) and SIM Slot for use with available 4G LTE connectivity. OnLogic's unique expansion options allow you to add DIO, COM or wireless antennas. Whatever you need to connect with, or connect to, Helix 310 has you covered.
