Nexcom USA Product

NISE3000 C30 Series

Model: NISE3000 C30 | NISE3000 C31

Nexcom USA

The NISE 3000 C30/C31 is a powerful, fanless edge computing system designed to meet the demands of industrial automation

Image of NISE3000 C30 Series

NISE3000 C30/ C31

AI-Driven High-Performance Expandable Edge Controller

Intel® Core™ Ultra 200 Series Processors 5/7/9, LGA1851 socket, PCI/PCIe expansions

  • Support Intel® Core™ Ultra 200 Series 5/7/9 (LGA1851) socket type embedded processors, up to 35W
  • Intel® Q870 PCH
  • 2 x DDR5 6400 CSO DIMM socket unbuffered and non-ECC, up to 96GB
  • 1 x DP, 1 x HDMI®, and USB Type-C (DP Alt Mode)
  • 2  x COM Port (DB9), supports RS-232/422/485 (2.5KV isolation)
  • 2 x COM Port (DB9), supports RS-232 (Varies by model)
  • 4 x USB 2.0, Type A, 4 x USB 3.2 Gen 2, 10Gbps, Type-A
  • 1 x USB 3.2 Gen 2x2, 20Gbps, Type-C (PD 60W, DP ALT mode)
  • 1 x USB 3.2 Gen 2, 10Gbps, Type-C (5V/3A, 15W)
  • 1 x M.2 Key B 2242/3052 (PCIe Gen. 3 x2, USB3.2, SATA, SIM)
  • 1 x M.2 Key M 2280 (PCIe Gen. 4 x4, NVMe)
  • 1 x M.2 Key E 2230 (PCIe x1, USB2)
  • • 1 x 2.5” SATA HDD/SSD (2 x 2.5” SSD for selected SKU)
  • • TPM 2.0 onboard (Default)
  • • Supports the PoE function (Varies by model)
  • • PCI/PCIe expansions (Varies by model)

Other Products from Nexcom USA

NISE110 Series Image

NISE110 Series

Powered by the latest generation of Intel Celeron® N97 Quad Core (formerly codenamed “Alder Lake–N ”), NISE110-A01 provides outstanding

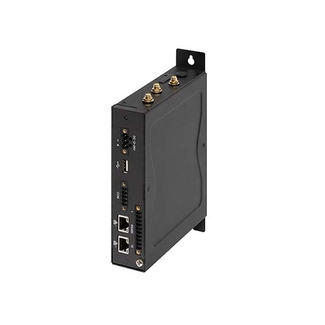

nDAS1000 Series Image
