New Imaging Technologies Product
New Imaging Technologies (NIT), part of Lynred, designs and manufactures high-performance SWIR InGaAs sensors and cameras in France, from line-scan to Full HD resolution, patented HDR (120?dB), and unmatched sensitivity for demanding industrial and photonics applications.
Product filed under:
Cameras & Smart Cameras, Gigabit Ethernet (GigE) Cameras, and GigE Vision Cameras & Smart Cameras, Gigabit Ethernet (GigE) Cameras, GigE Vision, Smart Cameras, USB Cameras, and USB3 Vision
See More

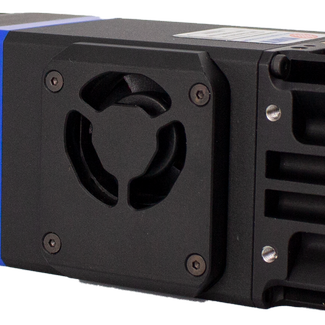

High-performance, TEC2 & air-cooled fan SWIR camera with low dark current for Long-exposure applications
The HiPe SenS benefits from NIT's latest SWIR sensor – NSC1902T-SI, thanks to the innovative design of its InGaAs photodiode array coupled to our high-performance ROIC. The new sensor’s highlights include low noise operation and ultra-low dark current.
HiPe SenS dedicated to low light imagery and long exposure time applications. It can operate with an FPA temperature as low as -20°C only with internal air cooling. Also, the small form factor allows easy integration to microscope benches or any other optical devices.
Among its best features are:
- Lowest dark current of its class: <1500 e-/pixels/s @-20°C
- High QE: 90% typical
- Sensor noise: < 40e-
- Integration time: 10 µs to 112 sec
- Frame rate: Up to 230fps full frame
Being vertically integrated from sensor to camera manufacturing, NIT can offer the HiPe SenS camera at an affordable price compared to other products in the market.
The camera line is suitable for numerous application areas:
- Medical & Life Science
- Metrology (microscopy, hyperspectral)
- Process control (industry, semiconductors, food)
- Surveillance
- Photon counting
The HiPe SenS is now available in the USB3.0 and CameraLink interface
