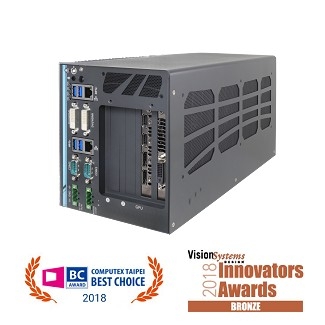

Ruggedized GPU Computing Edge AI Platform Supporting up to an NVIDIA® RTX 3070 Graphics Card, Nuvo-6108GC series

Ruggedized GPU Computing Edge AI Platform Supporting up to an NVIDIA® RTX 3070 Graphics Card, Intel® Xeon® E3 v5 or 6th-Gen Core™ processor

• Supports Intel® Xeon® E3 v5 or 6th-Gen Core™ i7/i5 LGA1151 CPU
• Supports up to an NVIDIA RTX 3070 graphics card
• Patented thermal design for -25? to 60? rugged operation*(* R.O.C Patent No. M534371)
• Two x8, Gen3 PCIe slots for add-on cards
• Dual GbE ports and four USB 3.1 Gen1 ports
• Four 2.5" SATA drives with RAID 0/1/5/10 support
• Automatic temperature sensing and fan control
• Patented damping brackets to withstand 1 Grms Vibration*(* R.O.C Patent No. M491752)

Nuvo-6108GC is world's first industrial-grade Edge AI GPU computer supporting high-end graphics cards. It's designed to fuel emerging GPU-accelerated applications, such as AI (artificial intelligence) inference, VR, autonomous driving and CUDA computing, by accommodating nVidia GPU with up to 250W TDP.

Leveraging Intel® C236 chipset, Nuvo-6108GC supports Xeon® E3 V5 or 6th-Gen Core™ i7/i5 CPU with up to 32 GB ECC/ non-ECC DDR4 memory. It incorporates general computer I/Os such as Gigabit Ethernet, USB 3.1 Gen1 and serial ports. In addition to the x16 PCIe port for GPU installation, Nuvo-6108GC further provides two x8 PCIe slots so you can have additional devices for information collection and communication.

Nuvo-6108GC comes with sophisticated power design to handle heavy power consumption and power transient of a 250W GPU. Furthermore, to have reliable GPU performance for industrial environments, Nuvo-6108GC inherits Neousys' patented design*, a tuned cold air intake to effectively dissipate the heat generated by GPU. This unique design guarantees operation at 60°C with 100% GPU loading and makes Nuvo-6108GC extremely reliable for demanding field usage.
