Ruggedized GPU Computing Edge AI platform supporting 120W NVIDIA® GPU, Nuvo-7160GC series

• Supports NVIDIA® GPU graphics card up to 120W TDP
• Patented thermal design to allow -25°C to 60°C wide temperature range operation
• Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
• 6x GigE ports, supporting 9.5 KB jumbo frame
• M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
• 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
• Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
• Compatible with MezIO™ interface for function expansion
• Patented ventilation design* for graphics card

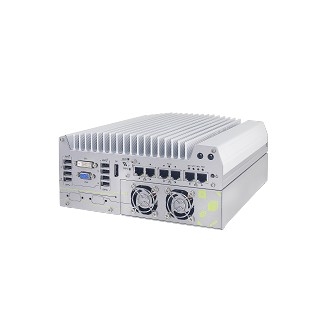

Nuvo-7160GC is a ruggedized GPU-aided edge computing platform designed for modern machine learning applications such as autonomous driving, facial recognition and machine vision. It supports up to a 120W GPU, delivering 4~6 TFLOPS computing power for inference, as well as Intel® 9th/ 8th-Gen Coffee Lake Core™ 8/ 6-core CPU, offering up to 50% CPU performance enhancement over previous generations.

Thanks to Neousys' patented Cassette design and ingenious ventilation mechanism, Nuvo-7160GC can effectively dissipate the heat generated by the GPU. By introducing the guided airflow from intake to exhaust with powerful fans featuring smart fan control, it allows a 120W GPU to operate at 60°C ambient temperature under 100% GPU loading.

Nuvo-7160GC incorporates rich I/O functions such as USB 3.1 Gen2/ Gen1, GbE, COM and MezIO™ interface in its restricted footprint. It also leverages cutting-edge M.2 NVMe SSD technology for over 2000MB/s disk read/ write speed or Intel® Optane™ memory for the ultimate system acceleration. Neousys Nuvo-7160GC is the ideal solution for emerging edge computing by combining exceptional CPU and GPU performances.
