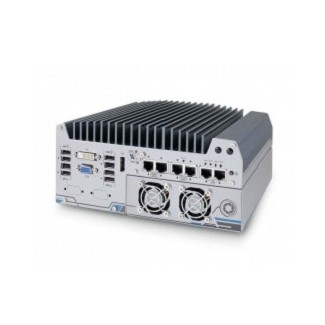

Intel® 9th/ 8th-Gen Core™ i machine vision computer Nuvis-7306RT Series

Intel® 9th/ 8th-Gen Core™ i machine vision computer with vision-specific I/O, real-time controller and GPU-computing

• Intel® 9th/ 8th-Gen Core™ i7/i5 LGA1151 socket-type CPU
• Integrated vision-specific I/O
  • 4-CH CC/CV lighting controller
  • 4-CH camera trigger outputs
  • 1-CH quadrature encoder input
  • 8-CH isolated DI and 8-CH isolated DO
• Patented MCU-based, real-time I/O control by DTIO V2 and NuMCU
• Built-in camera interfaces
  • 4-CH IEEE 802.3at Gigabit PoE+ ports with screw-lockk
  • 8-CH USB 3.1 ports with screw-lock
• Two x16 PCIe slots for NVIDIA 120W GPU and/or image capture card

Nuvis-7306RT series is an all-in-one powerful machine vision computer incorporating every function needed for machine vision applications. Powered by Intel® 9th/ 8th-Gen Core™ i7/i5, Nuvis-7306RT brings tremendous computing power for image processing. Nuvis-7306RT integrates constant-current lighting controller, isolated 12V camera trigger output, encoder input for position information and DIO to connect sensors/ actuators. Thanks to Neousys' patented MCU-based architecture and DTIO/ NuMCU firmware, Nuvis-7306RT is able to overcome latencies between sensor input and trigger output. It offers microsecond-scale real-time I/O control that guarantees in-time or in-position image capture. For deep learning vision applications, Nuvis-7306RT can accommodate an NVIDIA® 120W TDP GPU to leverage state-of-the-art object detection/ classification neural network models. Built-in vision-oriented I/O along with remarkable performance makes Nuvis-7306RT the most exceptional vision controller that fits right into the modern vision industry.
