Motion Index Drives, Inc. Product

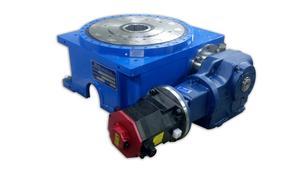

Image of RT400 Fixed Rotary Table

The Motion Index Drives RT Series Fixed Rotary Tables encompass a large range of sizes, ranging from our model RT100 up to our RT1250. In addition, special cam-driven devices can be custom made to order for your automation needs. RT Series Rotary Indexing Tables are offered in a fixed number of stations or as a flexible turntable with a servo motor or standard AC brake motor with encoder. With the addition of Motion’s patented NANO Indexer Technology, the RT Series becomes the world’s most accurate barrel cam indexers. RT Series indexing tables are constructed with strength and reliability in mind. Robust design and components ensure this device will maintain precision in intense factory settings.

Advantages for design engineers and special machine builders

  • For mounted accessories over 12 meters
  • For rapid assembly of small parts, inspection of parts, or for feeding parts into relatively large installations
  • For use in microelectronics, the food industry and medical technology
  • All RT Series tables available in fixed or FLEX programmable formats
  • Advantages for design engineers and special machine builders
  • Oscillating index operation capabilities
  • Easy synchronization of other mechanical devices
  • Large center thru-hole to feed pneumatic, electrical and other lines
  • Can be used in any mounting position
  • Technical benefits for users

Technical benefits for users

  • Extremely reliable with long service lives
  • High efficiency mechanical components require less input power
  • Flame hardened cams and cam followers
  • Internal components immersed in oil bath
  • Accuracies of up to ±0.008 mm (0.0003")
  • Most RT Series models maintenance free
  • Options available

Options available

  • Reinforced output flange bearing
  • Custom index and dwell angles
  • User-controlled stations and timing with the Motion Flex line
  • Clean room ready with MEDEX Index Drives
  • Extremely high accuracy applications with NANO Indexer Technology
