ADDere Standard System

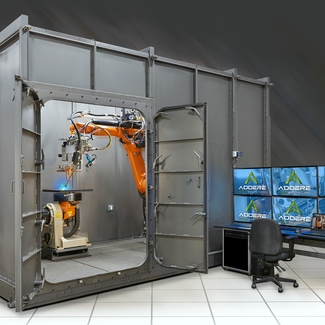

The ADDere Standard System is housed in a compact portable enclosure with everything required for 3D metal printing on-demand parts. The Standard System is a laser-wire additive manufacturing (LWAM) system that utilizes a highly accurate 6-axis industrial robot that is paired with a 2-axis coordinated motion workpiece positioner.

This system is capable of building components at near net shape from a number of common or specialty metal-based materials such as stainless steel or Inconel. An optional inert argon gas environment extends the capabilities of this system to build parts out of Titanium and a wide range of superalloys. The 4-6 kW laser combined with a 500-amp hot wire delivery package provides plentiful power for depositing material at a large scale. All of these only require 100 KVA to operate making the system easy to set up in different locations.

ADDere uses a real-time sensor system that is key to ADDere’s dimensional performance and quality of metal disposition. With closed-loop sensing and control the ADDere’s systems can offer some of the most consistent builds, with excellent metallurgical qualities and near net shaped results that reduce the amount of finishing required for the final product.

Along with the physical system, ADDere also provides the software that drives the entire additive manufacturing process. The ADDere Runtime Software controls the build height and width, the energy density control, head mapping and inter-pass print control, and the deposition rate control.
