Metaphase Technologies Inc. Product
“To bring innovation and inspiration to the global automated vision inspection industry, that improves the health, safety, and security of our communities.”
Product filed under:
Lasers & Lighting Equipment Lasers & Lighting Equipment

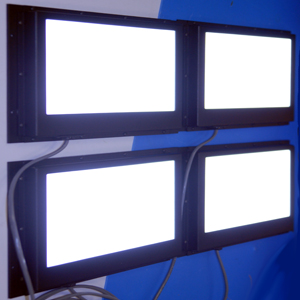

Backlighting is one of the most popular forms of vision inspection illumination, providing maximum contrast between object and scene and producing a high contrast image with consistent edge definition. Metaphase Backlights combine the latest high brightness LEDs with exclusive optical lensing to create high intensity and uniform (+/- 5%), shadow-free illumination. Connectorized and convenient 24VDC power supply features an onboard and integrated driver. Commonly applied to measuring, defect and hole detection, and determining the orientation of parts. Metaphase offers variety of backlights to suit the needs of various applications: area, linear, narrow, and our highly compact thin backlights. Backlights can be configured for wavelength and other specifications.
FEATURES:
• Available sizes: Area Backlights 1 x 1 in – 25 x 46 in, Linear Backlights 1.2 x 6 in - 1.2- 1 3 in, Narrow Backlights 0.5 x 4 in and 0.5 x 6 in, Thin Backlights 1x 1 in – 3 x 3 in
• Up to 50 SMD LED's per inch array makes our backlights the brightest most stable backlights in the industry
• Available Wavelengths: Red, Green, Blue, White, Infrared, UV, RGB
• Exclusive optical lens provides high uniformity (+/- 5%), shadow-free backlight illumination
• Patent-pending thermal management design draws heat directly from the die ensuring long life
• Backlights with in-line and built-in strobe circuit available (simply provide 24VDC to power light and trigger signal to strobe the backlight)
• Backlight shapes/sizes include low profile, narrow and large area backlights
• Options: built-in line remote & potentiometer intensity control
• Applications: Absence/presence of objects, Defect detection in glass/plastic containers, Object tracking (Fish in aquarium), PCB (printed circuit board) board assembly through-hole lead detection,Web inspection (pin-holes in web ),Bottle cap detection, Bolt/Bolt thread inspection, Glass sheet detection, Sub-pixel dimensional inspection
