At maxon, we develop and build high precision electric drive systems that are among the best in the world. We combine brushed and brushless DC motors, gearheads, sensors, and controllers into complete mechatronic drive systems.
Product filed under:
DC Brushless Motors, Motors, and Motors & Drives DC Brushless Motors, Motors, and Motors & Drives

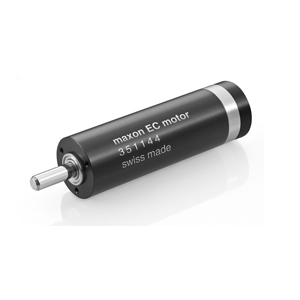

maxon motor introduces the brushless EC 25, for high speed applications of up to 70,000 rpm with an extremely low vibration characteristic and minimized scale. The motor is equipped with preloaded ball bearings and a two pole Neodymium permanent magnet. The motor measures at Ø25 x 84mm and is rated for nominal voltage of 36 VDC and reaches a nominal torque up to 42.2 mNm, nominal speed 61,600 rpm with efficiency above 93%. The motor-specific speed/torque gradient amounts to 44.9 rpm/mNm. This EC 25 motor is particularly suitable for high speed spindle-driven applications, as required in medical technology or machine tools.
