Macron Dynamics, Inc. Product
Member Since 2015
Since our inception in 1987, MACRON DYNAMICS, Inc. has been a proven leader in the design and manufacture of linear motion control products and systems for a wide range of Commercial and Industrial applications. Today, we offer a complete line of Modular Belt Driven Linear Actuators, Linear Drives, Rail Actuators, Robotic Positioners, Gantries, Dumbwaiters, Screw Driven Positioning Tables, Roller Conveyors and Extruded Aluminum Profiles. We specialize in the engineering of linear motion systems from basic assemblies to complete robotic automation systems that are capable of performing a wide range of tasks. Our products are designed to help our customers improve productivity and reduce costs through creative use of linear motion.
Product filed under:
Linear (Cartesian and Gantry), Power Transmission, and Actuators & Mechanics Linear (Cartesian and Gantry), Power Transmission, and Actuators & Mechanics

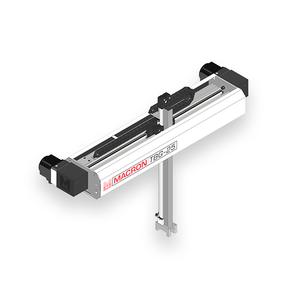

| Configuration: | X / Z |
| Designation: | MGS-TBG-25 |
| X Axis Travel: | 500 – 2000 [500mm increments] |
| Z Axis Travel: | 250 – 750 [250mm increments] |
| Max Load: | 50 lbs. |
Fast and versatile belt driven 2 axis Pick & Place system One single belt drives both axes Two fixed motor mounting locations Fixed motors reduce load, cable management and inertia requirements Positional repeatability +/- .10 mm [.004 inches] Speeds up to 4 M/sec. Sealed linear profile rail and bearing guidance Mounting flexibility for a variety of end effectors
