Since our inception in 1987, MACRON DYNAMICS, Inc. has been a proven leader in the design and manufacture of linear motion control products and systems for a wide range of Commercial and Industrial applications. Today, we offer a complete line of Modular Belt Driven Linear Actuators, Linear Drives, Rail Actuators, Robotic Positioners, Gantries, Dumbwaiters, Screw Driven Positioning Tables, Roller Conveyors and Extruded Aluminum Profiles. We specialize in the engineering of linear motion systems from basic assemblies to complete robotic automation systems that are capable of performing a wide range of tasks. Our products are designed to help our customers improve productivity and reduce costs through creative use of linear motion.
Product filed under:
Industrial, Linear (Cartesian and Gantry), and Power Transmission Industrial, Linear (Cartesian and Gantry), Power Transmission, and Actuators & Mechanics
See More

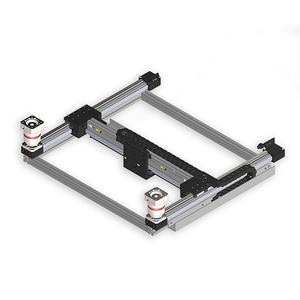

| Configuration: | X / Y |
| Designation: | MGS-HBG-25 |
| X Axis Travel: | 500 – 2000 [250mm increments] |
| Y Axis Travel: | 500 & 1000 |
| Max Load: | 50 lbs. |
- H-Bot configuration
- High speed, high performance 2 axis Cartesian robot
- Simple design: One single belt drives both axes
- Two fixed motor mounting locations
- Fixed motors reduce load, cable management and inertia requirements
- Positional repeatability +/- .05 mm
- Sealed linear profile rail and bearing guidance
- Low profile
- Mounting flexibility in either horizontal or vertical orientation
