Mabuchi Motor America Corp. Product
Member Since 2025
Mabuchi Motor is a globally recognized manufacturer of small compact DC motors. With over 70 years of experience with small DC motors for the Automotive, Life, Industrial, Medical and Robotics Industries, Mabuchi can help find the right motion solution for
Product filed under:
DC Brushless Motors and Motors DC Brushless Motors and Motors
Mabuchi Motor Brushless DC Motor, IR74BZA, perfect for Robotics, AGV/AMR, personal mobility and industrial applications.
Motor Model IR74BZA
Motor Type Brushless (BLDC)
Voltage - Rated 24VDC
RPM 3200 RPM
Torque - Rated (oz-in / mNm) 84.99 / 600
Power - Rated 200W
Sensor Type: Resolver
Size / Dimension Square - 2.362" x 2.362" (60mm x 60mm)
Diameter – Shaft 0.315" (8.00mm)
Length - Shaft 1.181" (30.00mm)
Mounting Hole Spacing 2.756" (70.00mm)
Termination Style Cable with Connector
Other Features -
Gear Reduction Ratio None
Torque - Max Momentary (oz-in / mNm) 127.5 / 900
Operating Temperature -10°C ~ 50°C
Weight 1.367 lb (0.62 kg)
Other Products from Mabuchi Motor America Corp.

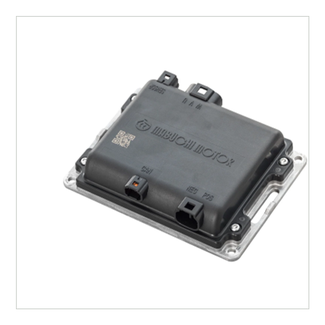

Mabuchi Controller for IS-94 and MS-94 Motors
Mabuchi Controller, DS-34EC1-IS221, for IS-94 and MS-94 Motors

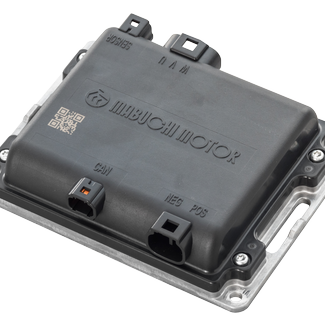

Mabuchi Controller for IR-74 and MR-94 Motors
