LINAK® produces electric linear actuator solutions to create smooth movement in a variety of very different applications. From healthcare to agriculture, comfort furniture, office interior, or industrial automation – the number of possibilities is almost endless. Explore and be inspired across the broad spectrum of business areas already serviced by LINAK.
Product filed under:
DC Brushed Motors, Motors, and Motors & Drives DC Brushed Motors, Motors, and Motors & Drives
Extremely powerful linear actuator made by LINAK. Up to 6,800 N thrust, or up to 168 mm/s. Designed to operate in extreme conditions. Solid choice for industrial and agricultural applications.

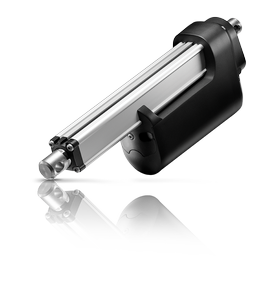

The actuator LA36 is one of our most robust and powerful electric actuators, designed to operate under extreme conditions.
The LA36 is a maintenance-free actuator with a long service life and a high IP rating, available with an optional ATEX/IECEx approval for use in dust-explosive environments. You can also get this actuator as an Off-highway variant, designed for agricultural machinery and other off-highway applications.
This high-quality actuator offers a very strong alternative to hydraulic solutions.
- Max. load: 6,800 N
- Max. speed: 168 mm/s
- Stroke length: 100-1200 mm
- Motor voltage: 12 V, 24 V, 36 V and 48 V
- IP ratings: IP66 dynamic and IP69K static
The LA36 is part of the IC Integrated Controller™ range, designed to integrate seamlessly with existing control systems in both industrial and off-highway applications. It offers a variety of industrial interfaces for smart and reliable movement.
You can choose the universal LINAK® I/O™ interface or select from a comprehensive range of communications protocols, including:
Fieldbus:
Industrial Ethernet:
Additionally, several of these options include Danfoss PLUS+1® Compliance.
Learn more about actuators with IC – Integrated Controller™.
Click here for more information on the LA36 actuator.
