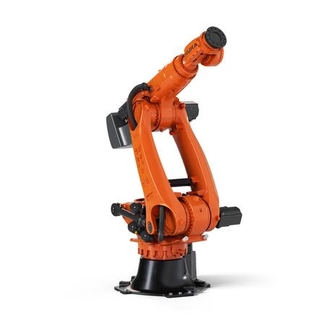

KR FORTEC ultra

The heavy-duty robots, with payloads of up to 800 kg, offer maximum performance in the smallest possible space and feature fast and precise handling of large components with a high moment of inertia.

Developed for high moments of inertia when handling heavy and large workpieces

From battery handling to gigacasting. In production, the requirements with regard to payload and reach are increasing sharply in combination with ever higher moments of inertia of the workpieces. The KR FORTEC ultra robots were designed to meet these requirements with maximum efficiency in the smallest possible space. As an intelligent modular and shared parts concept that allows the optimum robot to be selected for an application and adapted in the field. Leading the way in performance, cost-effectiveness and flexibility. Both now and in the future.

Unbeatable power in a compact design

• Most powerful robot in its class: up to 800 kg payload capacity
• Small footprint: 950 × 970 mm footprint
• “Lightweight” in the heavy-duty class: only 2.2 t weight
• High dynamic performance and short cycle times

Highest performance and maximum flexibility

• Optimized for use in numerous applications
• Compatible with tools of different sizes by selecting an HI version (HI=High Inertia)
• Upgrade to HI or versions with higher/lower payload capacity
• Special variants for Foundry and MT versions for machining applications*

Low TCO

• Low energy consumption
• Maximum availability:
  99.998%
• Higher MTBF: up to 400,000 h
• Short Mean Time To Maintenance
  (MTTM): 5.75 h
• Fast repair (MTTR): 0.84 h
• Low spare parts requirement

Reduced maintenance costs

• Components with low maintenance requirements
• High accessibility at the robot
• Low maintenance effort with only 3 measures:

  - Visual inspection
  - Lubrication
  - Oil change every 20,000 h

Provides maximum performance wherever extreme payloads with high moments of inertia are involved

Incredibly strong. Extremely compact & light.

The KR FORTEC ultra family offers a payload-to-weight ratio that is unprecedented in this payload category. With a payload capacity of 800 kg, it weighs 2.4 t, and with a payload capacity of 640 kg, it weighs just 2.2 t.

High Payload & High Inertia.

The extremely rigid design with double link arm system, powerful motors and heavy-duty gear units enables precise and fast handling of heavy, large-format parts with high moments of inertia.

Flexible cell and system planning

The streamlined disruptive contour, an extended working envelope in front of, above and behind the machine, as well as the small footprint enable use in confined cells, but also open up completely new cell concepts.

Cost-effectiveness redefined

Thanks to the optimum relationship between weight and payload capacity, the economical start-up and maintenance concept, and the reduced number of spare parts, the KR FORTEC ultra family ensures a significant reduction in operating costs.

Highest performance

Due to its motion algorithm and the resulting higher axis acceleration, as well as the shortest positioning time in its class, the heavy-duty robot delivers even higher dynamic performance and shorter cycle times.

Convertible payload capacity & 2nd life ability

The robots of the KR FORTEC ultra family can be converted and upgraded at any time in terms of payload capacity and mass inertia to suit new tasks. This allows the robot to be reused in new applications and guarantees maximum flexibility in production.

Optimized design for application versatility

In addition to the standard waterproof and dustproof in-line wrist (wrist axes A4-A6 in IP65 & IP67 versions), the robot also offers a Foundry option for use in particularly hot, wet or dirty environments.

Climate-friendly robotics

With its low energy consumption, which includes state-of-the-art drive technology and the latest software and controller technology, the Second Life-capable industrial robot with long service life and reduced footprint offers a climate-friendly overall robotics package.
