Konica Minolta Sensing Americas provides optical technology that precisely measures the elements of color and light. Our products have become a staple in research and manufacturing environments, helping meet product quality and operational goals with less waste, time, and effort.
Product filed under:
Cameras & Smart Cameras, Optics / Lenses / Filters, and Vision Systems Cameras & Smart Cameras, Optics / Lenses / Filters, and Vision Systems

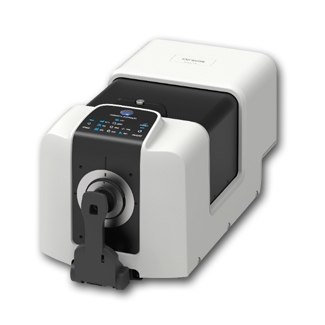

The CM-36dG Spectrophotometer performs simultaneous color and 60° gloss measurements with high precision. It supports reflectance and transmittance modes
Introducing the industry’s first color and gloss bench-top spectrophotometer, the Spectrophotometer CM-36dG, with an integrated ISO 2813 compliant 60° gloss sensor inside to measure color and true gloss simultaneously. By measuring and reporting both values together, you can streamline your quality control workflow, reduce operator errors, and save on equipment and maintenance costs.
The Spectrophotometer CM-36dG is a high-precision and high-reliability bench-top instrument capable of measuring color either in reflectance or transmittance, ideally suited to a wide range of applications such as Plastics, Paints, Ceramics, Chemicals, etc.
The Spectrophotometer CM-36dG utilizes the patented and proven Numerical UV Control (NUVC), unsurpassed technology for UV adjustments when measuring samples that contain optical brighteners such as pulp, paper, textiles, or chemicals.
The Spectrophotometer CM-36dG includes several new features to improve the user experience. Status LEDs provide clear visual feedback, a camera preview system for sample positioning and reporting, and versatile port alignment allowing the device to be rotated 90° to measure powdery materials in “Top-port” style.
The optional Wavelength Analysis & Adjustment or WAA, a Konica Minolta Sensing innovation, compensates for slight shifts in measurement values due to external factors. It assures the highest accuracy and repeatability levels for this class of instrument when done together with annual calibration and maintenance.
The Spectrophotometer CM-36dG is compatible with SpectraMagic NX2 software to record measurements and provide a more comprehensive color analysis, as well as others software to formulate color recipes for various applications and share real-time measurement data.
Click here for the CM-36dG Brochure.Other Products from Konica Minolta Sensing Americas

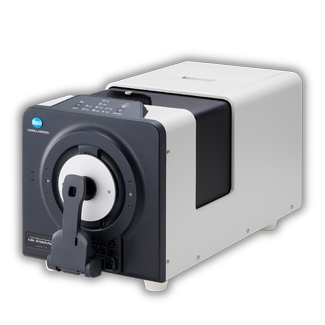

CM-3700A Plus Spectrophotometer
Konica Minolta’s CM-3700A Plus Spectrophotometer offers high-precision color measurement for opaque, translucent, and fluorescent samples, with enhanced black color repeatability and simultaneous SCI/SCE for faster, more reliable results.
CM-26dG Spectrophotometer
The CM-26dG spectrophotometer simultaneously measures color and 60° gloss, improving inspection speed and eliminating the need for separate instruments.
