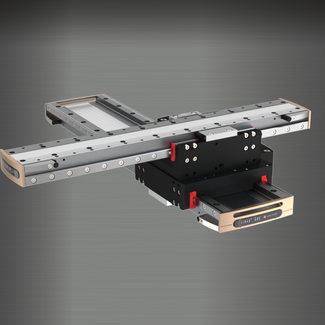

X-Y CROSS TABLE

Standardized components save development costs, reduce setup and spare parts inventory budgets.

ELAX® electric slides
Modular system in perfection – an essential key factor when the ELAX^® electric slides with direct drive were developed. No matter if held flat, upright, as cross table or as cantilever, the ELAX^® electric slides can be directly screwed together by dowel bushing without the need of adapter plates. The hole matrix has always a grid of 20 x 50 mm (0.79" x 1.97").

LINAX® Lxc linear motors
The various LINAX^® linear motor types can be directly mounted to each other without the need of adapter plates. For cross table combinations there are multiple grid patterns possible.
For the choice of the according screws, the upper mounted linear motor is relevant (For example if a LINAX^® Lxc F10 is mounted on the top of a LINAX^® Lxc F40, use fixing screw set for the Lxc F10).

LINAX® Lxu linear motors
The four long holes through the carriage slider allow direct screw connections for the back to back mounting of two LINAX^® Lxu slides, which is ideal for X-Z handling.

LINAX® Lxs linear motors
The various LINAX^® linear motor types can be directly mounted to each other without the need of adapter plates. For cross table combinations there are multiple grid patterns possible.
For the choice of the according screws, the upper mounted linear motor is relevant
