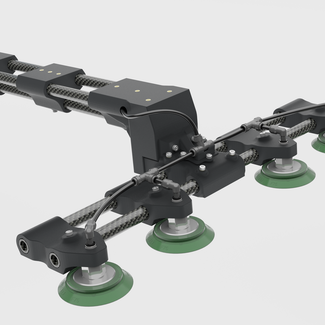

M.A.T. 85 is a modular end-of-arm tooling platform for press brake, pick-and-place, and material handling applications. Reconfigurable components and built-in wire and pneumatic routing allow the system to adapt across multiple automation tasks without needing to redesign.
M.A.T. 85, or Modular Adaptive Tooling, is a reconfigurable end-of-arm tooling platform developed for press brake, pick-and-place, and material handling applications. Its modular design allows components to be repositioned, expanded, or used separately as production requirements change.
Built-in channels organize pneumatic tubing and wiring, reducing exposed routing and keeping the tool easier to configure and service. Carbon-fiber structural components provide rigidity while limiting the amount of payload consumed by the tooling.
Key specifications include:
- Extension weight: approximately 1.1 pounds
- Air tooling weight: approximately 2.15 pounds
- Complete system weight: approximately 3.7 pounds
- Added extension reach: 15.5 inches
- Combined reach: 21.5 inches
- Choice of suction cup configuration
Recommended handled loads depend on the robot, tooling configuration, suction-cup selection, part geometry, and operating conditions.
Every M.A.T. 85 system is backed by a one-year warranty.
Contact Innovated Manufacturing to determine the appropriate configuration for your robot, application, and production requirements.
Other Products from Innovated Manufacturing

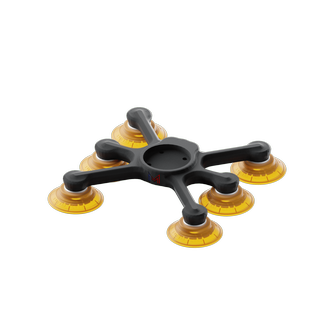

Fortis - Vacuum End-of-Arm Tooling Kit
