Innodisk USA Corporation Product
Member Since 2025
Innodisk is a global leader in industrial-grade SSD, DRAM, and Edge AI solutions.
Product filed under:
Frame Grabbers & Imaging Boards Frame Grabbers & Imaging Boards

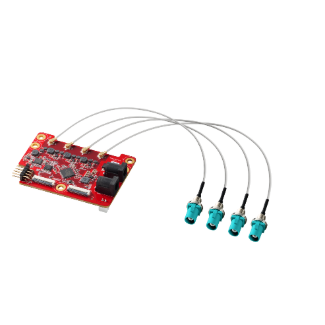

MIPI CSI-2 22-pin x2 to GMSL2 IPEX FAKRA Z x4 Adapter Board
Model: EB022-2M4F
Innodisk’s EB022-2M4F is an adapter board designed to bridge MIPI CSI-2 and GMSL2 interfaces, featuring dual 22-pin inputs and four FAKRA Z outputs. Powered by the onboard MAXIM MAX96724 deserializer chipset, it delivers stable, high-speed data transmission for multi-camera applications.
Features
- Camera Interface : GMSL2™ IPEX FAKRA Z x4
- Host Interface: MIPI CSI-2 22-pin x2
- Deserializer Chipset (Onboard): MAXIM MAX96724
Innodisk’s EB022-2M4F is an adapter board designed to bridge MIPI CSI-2 and GMSL2 interfaces, featuring dual 22-pin inputs and four FAKRA Z outputs. Powered by the onboard MAXIM MAX96724 deserializer chipset, it delivers stable, high-speed data transmission for multi-camera applications.
When paired with Innodisk cameras, the adapter board simplifies system integration by reducing design complexity and streamlining camera connectivity. Tailored for AI vision, embedded systems, robotics, and machine vision, it provides reliable performance backed by a 3-year warranty. By accelerating validation and shortening time-to-market, the EB022-2M4F empowers developers and system integrators to build advanced vision solutions with confidence.
