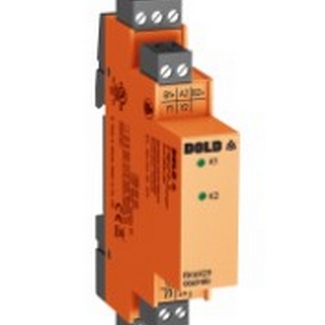

DOLD Relay Extension Module RK 6929
Model: DOLD Relay Extension Module RK 6929
Extension modules: With extension modules the output contacts of the base modules can be multiplied.
Product description
The RK 6929 of the SAFEMASTER series offers up to two seperately controlled relays in a compact housing. With its forcibly actuated contacts it can be applied for the safe decoupling of control and performance level as well as for the contact reinforcement of safety switch deviced and control. Safety-related semi-conductor outputs can be extended by potential-free relay contacts with the RK 6929.
Technical specifications
| Width: | 17,5 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 6 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Pluggable screw terminals |
| Output contacts max.: | 1 NC contact, 2 NO contacts |
| Type: | RK 6929 |
Advantages
- Cost and space saving alternative compared to contactors
- As option with pluggable terminal blocks for easy exchange of devices
- With screw terminals
- With cage clamp terminals - Reinforced insulation acc. to IEC 60664-1 and IEC 61010-1-1
Features
- Can be used in conjunction with a suitable switchgear / control unit in safety applications as follows:
- Up to PL e and category 4 according to EN ISO 13849-1
- Up to maximum SIL 3 according to EN IEC 62061
- Up to SIL 3 according to EN 61508 and EN 61511 - According to EN 50156-1 for furnaces
- Control from semiconductor safety outputs (light curtains, e-stop, etc.) is also possible
- With forcibly guided contacts acc. to IEC 61810-3
- Indication for operating condition
- As option with gold plated contacts to switch low loads
- Width: 17,5 mm
Other Products from Industrial Safety Controls Inc
DOLD LG/BG 5933 Two-hand control Modules
The LG 5933 enables and disables a safety circuit in a safe way.

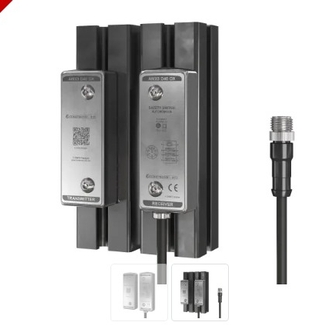

Comitronic-BTI stand-alone safety switch for 40 mm profiles
