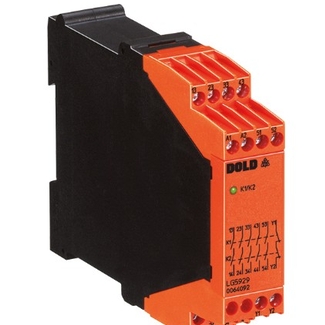

DOLD Relay Extension Module LG 5929
Model: DOLD Relay Extension Module LG 5929
If more safety cicuits have to be switched, than a safety module provides, the extension module LG 5929 is used.
Product description
If more safety cicuits have to be switched, than a safety module provides, the extension module LG 5929 is used. It offers safe and reliable contact multiplication and re-enforcment for safety modules with monitoring of the feedback circuit. Safe semiconductor outputs can be extended by relay output contacts. The extension module has forcibly guided contacts and can be delivered with different contact arrangements.
Technical specifications
| Width: | 22,5 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | AC, AC/DC |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
| Output contacts max.: | 1 NC contact, 5 NO contacts |
| Approvals: | UL |
| Type: | LG 5929 |
Advantages
- Safety contact multiplication
Features
- Can be used in conjunction with a suitable switchgear / control unit in safety applications as follows:
- Up to PL e and category 4 according to EN ISO 13849-1
- Up to maximum SIL 3 according to EN IEC 62061
- Up to SIL 3 according to EN 61508 - According to EN 50156-1 for furnaces
- Control from semiconductor safety outputs (light curtains, e-stop, etc.) is also possible
- Redundant and forcibly guided contacts
- Output: max. 5 NO contacts or 4 NO contacts / 1 NC contact
- 1-channel or 2-channel connection
- LED indication for operation
- Removeable terminal strips
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices
- With screw terminals
- Or with cage clamp terminals - Width 22.5 mm
Other Products from Industrial Safety Controls Inc

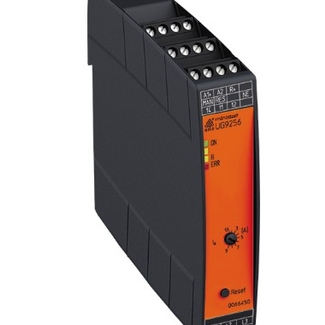

DOLD Smart Motor Starter UG 9256
