Dold Multifunctional Safety module BH 5910
Model: Dold Multifunctional Safety module BH 5910
According to - Performance Level (PL) e and category 4 to EN ISO 13849-1 - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061 - Safety Integrity Level (SIL 3) to IEC/EN 61508 Functions selectable via rotational switches to connect max.: - 8 E-stop circuits, single channel or - 4 E-stop circuits, 2-channel or - 4 light curtains or - 2 light curtains and 1 E-stop circuit or - 4 safety gates or - 2 safety gates and 1 E-stop circuit or - 4 pairs of 2-hand-buttons or Typ III A according to EN IS
Dold Multifunctional Safety module BH 5910
Product description
Protection of men and machines.
Technical specifications
| Width: | 45 mm |
| Cat. / PL acc. to EN ISO 13849-1: | 4/e |
| SIL acc. to IEC/EN 62061: | 3 |
| Nominal voltage: | DC |
| Thermal current Ith max.: | 5 A |
| 1- / 2-channel: | 1, 2 |
| Application: | Emergency stop, Light barrier, Safety gate, Two-hand |
| Auxiliary contacts: | Yes |
| Cross fault detection: | Yes |
| Feedback for external monitoring: | Yes |
| Connection: | Pluggable screw terminals |
| Safe output contacts, redundant NO contacts: | 3 |
| Approvals: | UL |
| Type: | BH 5910 |
Other Products from Industrial Safety Controls Inc

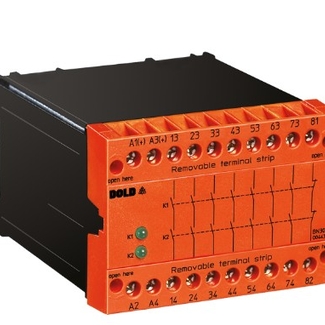

DOLD Relay Extension Module BN 3081
