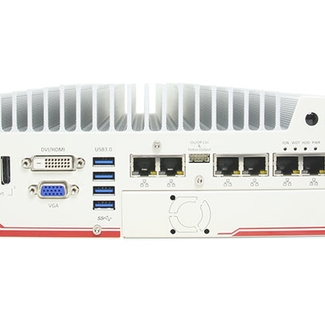

NEOUSYS NUVO-5000E Skylake Intel® Core™ i7/i5/i3 Fanless Computer with PCIe/PCI Expansion Cassette
| System | |
| Processor | Intel® Core™ i7-6700 (3.4/4.0 GHz, 8M, 65W TDP)* Intel® Core™ i5-6600 (3.3/3.9 GHz, 6M, 65W TDP)* Intel® Core™ i3-6100 (3.7 GHz, 3M, 51W TDP)* Intel® Core™ i7-6700TE (2.4/3.4 GHz, 8M, 35W TDP) Intel® Core™ i5-6500TE (2.3/3.3 GHz, 6M, 35W TDP) Intel® Core™ i3-6100TE (2.7 GHz, 4M, 35W TDP) Pentium® G4400TE (2.4 GHz, 3M, 35W TDP) |
| Chipset | Intel® Q170 Platform Controller Hub |
| Graphics | Integrated Intel® HD Graphics 530 (Core™ i7/i5/i3) Integrated Intel® HD Graphics 510 (Pentium®) |
| Memory | Up to 32GB SO-DIMM DDR4 |
| AMT | Supports Intel® AMT 11.0 |
| TPM | Supports TPM 1.2 |
| I/O | |
| Ethernet | 2x GbE - 1x Intel® I219 and 1x I210 (Nuvo-5002E/P) 6x GbE - 1x Intel® I219 and 5x I210 (Nuvo-5006E/P) |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80W total power budget |
| Video | 1x Stacked VGA + DVI-D 2x DisplayPort, supporting 4K2K |
| USB | 4x USB 2.0 4x USB 3.0 |
| Serial | 2x RS-232/422/485 1x RS-232 |
| Audio | 1x Audio Out 1x Audio In |
| Expansion | |
| PCI Express | 1x PCIe x16 slot @ Gen3, 8-lanes PCIe signals in Cassette (Nuvo-5002E/5006E) |
| PCI | 1x PCI slot in Cassette (Nuvo-5002P/5006P) |
| Mini PCIe | 1x mini PCI-E socket with front-accessible SIM socket 1x mini PCI-E socket with internal SIM socket |
| Expandable I/O | 1x MezIO™ expansion port for MezIO™ modules |
| Storage | |
| SATA | 2x SATA for 2.5" SSD/HDD, supporting RAID 0/1 |
| CFast | N/A |
| Power Supply | |
| Input | 1x 3-pin power connector for 8~35V DC |
| Adapter | 120W Power Adapter (optional) |
| Ignition Control | Optional |
| Remote Ctrl & Status Output | 1x 10-pin (2x5) wafer connector for remote on/off control and status LED output |
| Mechanical | |
| Dimensions | 9.45" (W) x 8.86" (D) x 3.54" (H) |
| Weight | 9.7 lbs including SSD and RAM |
| Mounting | Wall Mount DIN-Rail Mount (optional) |
| Environmental | |
| Operating Temperature | -25°C ~ 70°C with i7-6700TE, i5-6500TE, i3-6100TE, Pentium G4400TE (35W TDP) -25°C ~ 50°C with i7-6700, i5-6500, i3-6100 (65W/51W TDP) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes(w/ SSD, according to IEC60068-2-64) |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
| Certifications | CE/FCC Class A, according to EN 55022 & EN 55024 |
| Ordering Information | |
| Nuvo-5002E | Nuvo-5000 with 2x GbE ports, PCIe Expansion Cassette, and MezIO™ |
| Nuvo-5002P | Nuvo-5000 with 2x GbE ports, PCI Expansion Cassette, and MezIO™ |
| Nuvo-5006E | Nuvo-5000 with 6x GbE ports, PCIe Expansion Cassette, and MezIO™ |
| Nuvo-5006P | Nuvo-5000 with 6x GbE ports, PCI Expansion Cassette, and MezIO™ |
