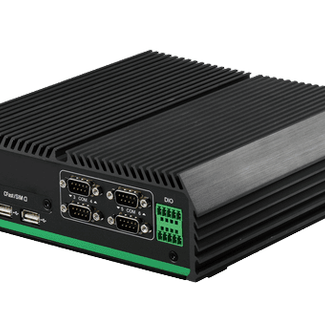

Cincoze DE-1000 Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer
| System | |
| CPU | Intel® Atom™ E3845 |
| Frequency | 1.91 GHz |
| BIOS | AMI 64Mbit SPI |
| Core Number | 4 |
| I/O | |
| USB | 1x 5Gbps USB 3.2 Gen1, Type A 4x 480Mbps USB 2.0, Type A |
| COM Port | 6x RS-232/422/485 |
| PS/2 | 1x KB/MS |
| Expansion | |
| Mini PCI Express | 2x Full-size Mini PCIe |
| Storage | |
| SSD/HDD | 2x 2.5" SATA HDD Bay |
| mSATA | 1x mSATA (shared by Mini-PCIe socket) |
| CompactFlash/CFast | 1x CFast |
| SIM Socket | 1 |
| Power Supply | |
| Power Type | AT/ATX |
| Power Supply Voltage | 9~48VDC |
| Mechanical | |
| Dimensions | 203 x 200 x 65 mm |
| Weight | 2.84kg |
| Mounting | Wall Mounting (Optional Side / VESA / DIN-Rail Mounting) |
| Environmental | |
| Operating Temperature | Ambient with air flow: -25°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -30°C to 85°C |
| Humidity | 10%~95% (non-condensing) |
