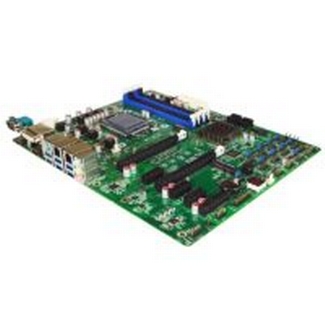

6th Gen. Intel Core i7/i5/i3 ATX Motherboard with 6x PCIe
Model: NAF591-Q170
6th Gen. Intel® Core™ i7/i5/i3 ATX Motherboard with 6x PCIe 6th Generation Intel® Core™ i3/i5/i7 2x GbE, 6x USB 3.0, 1x RS-232/422/485 6x
| System | |
| CPU | Socket LGA1151 for 6th Generation Intel® Core™ i7/i5/i3/Celeron (Skylake) Intel® Core™ i7-6700 4-Core (3.4/4.0 GHz, 8M, 65W TDP) Intel® Core™ i5-6500 4-Core (3.2/3.6 GHz, 6M, 65W TDP) Intel® Core™ i3-6100 2-Core (3.7 GHz, 3M, 51W TDP) |
| Chipset | Q170 |
| BIOS | AMI UEFI 128MB SMT Flash ROM |
| Expansion | |
| PCIe | 1x PCIe x16 1x PCIe x16 (x8 bandwidth) 1x PCIe x4 3x PCIe x1 |
| PCI | – |
| Mini PCIe | 1x Mini PCIe |
| Memory | |
| Technology | Dual-Channel DDR4-2133 MHz |
| Max. | 64GB |
| Socket | 4x UDIMM |
| SATA | |
| SATA3 | 4x SATA3 (6.0Gb/S) |
| SATA Express | 1x SATA Express |
| RAID | RAID 0/1/5/10 |
| M.2 | 1x M.2 slot (SATA + PCIe 3.0 x4, M-key, 2242/2260/2280/22110) |
| Rear I/O | |
| DVI | 1x DVI-D (1920 x 1080 at 60Hz) |
| HDMI | 1x HDMI 2.0 (4096 x 2160 at 60Hz) |
| DisplayPort | 1x DisplayPort 1.2 (4096 x 2304 at 60Hz) |
| Ethernet | 2x GbE (1x I219-LM, 1x I211-AT) |
| USB | 6x USB 3.0 |
| Serial | 1x RS-232/422/485 |
| PS/2 | 1x PS/2 |
| Audio | 1x Audio Out 1x Audio In 1x Mic In |
| Internal I/O | |
| USB | 2x USB header for 4x USB 2.0 |
| Serial | 8x RS-232 1x RS-232/422/485 |
| GPIO | 10-pin GPIO Header |
| TPM | 1x TPM 1.2 Header |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 85°C |
| Power Requirements | |
| Input PWR | ATX PWR (8 + 24) |
| Power On | AT/ATX Supported – AT : Directly PWR on as power input ready – ATX : Press button to PWR on after power input ready |
| OS Support | |
| Windows | Windows 7 Pro (32/64-bit) Windows 8.1 Pro (32/64-bit) Windows 10 Pro (32/64-bit) Windows 10 IoT Enterprise (64-bit) |
| Linux | CentOS 7.0 Debian 7.0 Fedora 23 openSUSE 13.2 Ubuntu 15.10 RedHat 7.1 |
