The Shibaura/Toshiba Machine X Series provides high performance servo products at competitive prices. Easy configuration adjustments makes set up simple.
The Shibaura/Toshiba Machine X Series are high performance servo products available in North America with local stock, support and service. The X Series represents quality products at competitive prices.
HIGH SPEED AND PERFORMANCE
Excellent speed control is realized by the use of dedicated speed/current digital control loop hardware and high-speed sampling rate of the motor’s positioning sensor. The amplifier includes a servo loop damping function creating stable motion operations in machines of low rigidity construction.

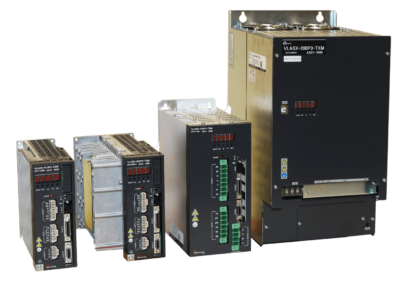

THE VLASX AMPLIFIER MODELS OFFERED BY SHIBAURA/TOSHIBA MACHINE
The standard amplifiers feature a built-in command system that allows machine control for speed, current, direct feed and draw control. Direct feed and draw control modes utilize the pulse and direction type input or a slave encoder input. Both current and speed control utilize an analog +/- 10 VDC input command. Available in ten sizes; 2.2 to 166 Arms/phase, 230 to 460 VAC.
Built-In Machine Control Operations:
- Speed control mode
- Current control mode
- Pulse and Direction Position Control mode
- Change Speed/Current/Position mode dynamically
- Direct feed mode
- Draw control mode
Motor Features
- 30 to 55kW Rated Power Output
- 1500 to 5000 RPM Speeds
- High Energy Density Magnets for High Performance in Small Frame Size
- Low and Medium Inertia Models
- Metric Mounting
- High Torque-to-Inertia Ratio
- Integral Holding Brakes
Servo Amplifier Features
- +/- 10VDC Speed or Torque Control
- Pulse and direction RS422 inputs for use as stepper replacement or with an external controller
- 24VDC I/O General-purpose input
- Follower encoder input for electronic gearing application
- RS422 encoder ABZ emulation output with scalable resolution
- Multiple Modes of Operation
- Speed
- Current
- Position
- Speed / Current / Position (Changeable on the Fly)
- Direct Feed (Preset Speeds)
- Draw Control (Follower Electronic Ratio)
- Panel Mount Enclosure Design
- Five Segment Status Display
- Resolver, Encoder and Absolute Motor Feedback Options Simulated Encoder Output
- PC Software Tools With Oscilloscope Functionality
