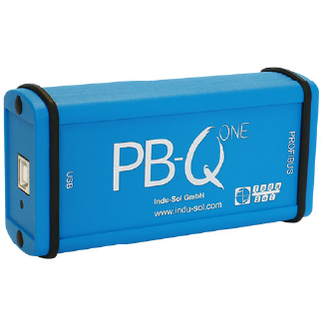

PROFIBUS Tester PB-Q ONE

The PB-Q ONE is a mobile PROFIBUS troubleshooting tool for complete evaluation of PROFIBUS communication quality including cables, signals, and communication between PLCs and network devices. Its ease of use and automated evaluation allow reliable assessment of physical and logical transmission quality in seconds.

Key Features
- PROFIBUS error display with traffic-light evaluation
- Automated network topology mapping during production
- Cable length and signal quality measurement (signal-to-noise ratio)
- Device matrix showing all PROFIBUS devices with quality indicators
- Oscilloscope and telegram analyzer
- DP master simulator functionality

The PB-Q ONE detects common PROFIBUS issues including cable and connector faults, EMC grounding and shielding problems, excessive cable length, termination errors, baud rate issues, and communication failures. With optional adapters, it supports both PROFIBUS DP (RS-485) and PROFIBUS PA networks.

Results are displayed with clear color-coded indicators (green, yellow, red) for immediate evaluation. The device enables non-intrusive diagnostics on running production lines and generates exportable acceptance reports for commissioning and maintenance documentation.

Technical Specifications
- 9-pole D-SUB PROFIBUS port
- Transmission rate: 9.6 kBit/s to 12 MBit/s
- USB 2.0 powered (500mA)
- Dimensions: 60 x 117 x 35 mm
- IP20 protection rating
- Operating temperature: 0°C to +50°C

Kit includes PB-Q ONE hardware, Indu-Sol Suite Software (DP & PA), D-Sub adapter cable, USB cable, and carrying case. Optional accessories include PROFIBUS PA adapter, M12 Y measuring adapter, and diagnostic connectors.
