PROFIBUS Cable - Standard

PROFIBUS Cable, Standard

The PROFIBUS Cable Standard is a solid AWG22 copper cable designed for fixed installation in PROFIBUS DP and PROFIBUS FMS networks in dry and wet industrial environments. Double shielding — a plastic-laminated aluminum foil layer combined with a tinned copper wire braid — makes the cable suited for installation in electromagnetically loaded areas where interference from drives, inverters, and other industrial equipment is present. The cable meets the electrical requirements of IEC 61158-2, DIN 19245 T3, and EN 50170 Type A, and supports PROFIBUS transmission rates from 9.6 kbps up to 12 Mbps. Compatible with PROFIBUS Fast Connect diagnostic connectors for IDC termination. Sold per meter, with required length entered in the quantity field at checkout.

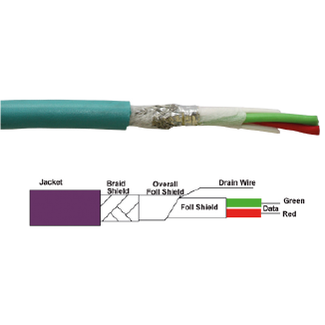

Also available in a flexible version for installations requiring repeated bending, and an extreme drag-chain capable version for high-cycle cable carrier applications.

Key Features
Double Shielding: Plastic-laminated aluminum foil inner shield combined with a tinned copper wire braid (>85% optical coverage) provides comprehensive EMC protection for use in electromagnetically loaded industrial environments.

Solid AWG22 Conductor: Bare solid copper conductor rated for fixed installation, delivering stable electrical performance across the full PROFIBUS baud rate range from 9.6 kbps to 12 Mbps.

150 Ohm Rated Impedance: Meets the PROFIBUS Type A cable specification for characteristic impedance, ensuring compatibility with all PROFIBUS DP devices and compliant installation per EN 50170.

EN 50170 Type A Compliant: Meets the PROFIBUS cable Type A standard per IEC 61158-2, DIN 19245 T3, and EN 50170, making it compatible with all PROFIBUS DP and FMS applications including Siemens SIMATIC NET installations.

Fast Connect Compatible: Compatible with PROFIBUS Fast Connect diagnostic connectors (90°, 45°, and axial) for IDC termination, allowing rapid cable preparation and connection using the PROFIBUS FastConnect Stripping Tool.

Violet RAL 4001 Jacket: Standard PROFIBUS violet outer jacket color per EN 50170 for straightforward identification of PROFIBUS cable runs in mixed-protocol installations.

Wide Baud Rate Support: Supports PROFIBUS transmission rates from 9.6 kbps up to 12 Mbps, covering all standard PROFIBUS DP baud rate settings.

Common Applications
Fixed PROFIBUS cable runs between PLCs, remote I/O, drives, and other PROFIBUS DP devices in control cabinets, cable trays, and conduit in machine and plant installations

New PROFIBUS infrastructure installations requiring compliant, double-shielded cable per EN 50170 Type A specifications in electromagnetically demanding industrial environments

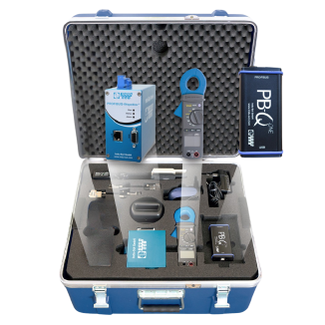

Replacement of degraded or damaged PROFIBUS cable segments in existing installations where physical layer issues have been identified through diagnostic measurements with the PB-Q ONE or PROFIBUS-INspektor® NT

System integrators and machine builders sourcing standard PROFIBUS cable for machine-level fieldbus infrastructure across automotive, food and beverage, packaging, and general manufacturing applications

Technical Specifications
-Cable Type: PROFIBUS Standard, Solid
-Conductor: AWG22/1 bare solid copper
-Insulation: FS-PE
-Insulation Diameter: 2.50 ±0.05mm
-Outer Jacket: Special PVC, violet RAL 4001
-Jacket Diameter: 7.8 ±0.2mm
-Shielding: Plastic-laminated aluminum foil + tinned copper wire braid (>85% optical coverage)
-Rated Impedance: 150 Ohm
-Loop Resistance: Max. 150 Ohm/km per VDE 0812
-Operating Capacity: Nom. 30 nF/km
-Transfer Impedance (10 MHz): < 20 mOhm/m
-Screen Resistance: < 9.5 mOhm/m
-Insulation Resistance: Min. 5 GOhm·km at +20°C
-Test Voltage: 1000V DC
-Working Voltage: 125V
-Max. Tractive Force: 100N
-Bending Radius (fixed): 6 x diameter
-Bending Radius (during installation): 12 x diameter
-Operating Temperature (fixed): -5°C to +70°C
-Operating Temperature (moved): -30°C to +80°C
-Standards: IEC 61158-2, DIN 19245 T3, EN 50170, EN 60332-1-2
-RoHS Compliant: Yes (RoHS 2002/95/EG)
-Sold: Per meter (enter required length in quantity field)
-SKU: 110070000
