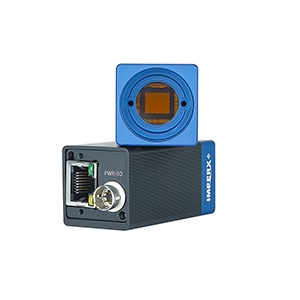

Imperx manufactures ruggedized, high performance cameras for industrial applications. Combining extensive, easy-use features with the best CCD & CMOS sensors, Imperx cameras are available in resolutions from VGA-50 MP. Designed to perform to the highest standards in harsh environments including MIL STD 810G, the extended operating temperature is -40°C to +85°C with a MTBF > 660,000 hours @ 40°C. IMPERX camera outputs: 10GigE Vision® standard and over fiber, CoaXPress, GigE Vision®, Power over Ethernet, GigE with PoE, Camera Link®, U3V, CoaXPress and 3G/HD-SDI.

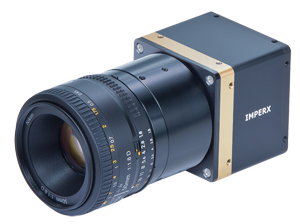

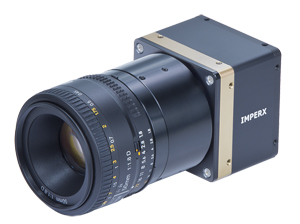

Cheetah offers the ultimate in user flexibility with global or rolling shutter modes, selectable 8, 10 or 12-bit digitization, multiple decimation or pixel averaging modes, two configurable inputs, two configurable outputs, and Camera Link® Full (CLF) or CoaXPress (CXP) user interfaces. The configuration capabilities are endless utilizing our easy camera configuration tool with programmability for each input and output. With virtually limitless capability to adapt to your changing requirements. The configuration capabilities are endless utilizing our easy camera configuration tool with programmability for each input and output. Triggering options include rising or falling edge, de-bounce, internal, computer or external trigger. Output options include trigger mirror, pulse generator or strobe. Cheetah offers internal pre-image processing including auto-white balance, hot pixel correction, defective pixel correction and a look up table (dynamic transfer function correction) for gamma and knee-point corrections. Output options include image positive or image negative, horizontal or vertical image mirror or bit shift. With virtually limitless capability to adapt to your changing requirements, the Cheetah C4080 and C2880 cameras change the game by providing unprecedented control and readout flexibility using our intuitive graphical user interface. The unique Frame A / Frame B feature allows the user to configure two independent camera frame configurations. Select the resolution, exposure, gain, dynamic range and decimation for each frame configuration then mix and match frames programmatically or by external trigger.
