Imperx, Inc. Product
Imperx manufactures ruggedized, high performance cameras for industrial applications. Combining extensive, easy-use features with the best CCD & CMOS sensors, Imperx cameras are available in resolutions from VGA-50 MP. Designed to perform to the highest standards in harsh environments including MIL STD 810G, the extended operating temperature is -40°C to +85°C with a MTBF > 660,000 hours @ 40°C. IMPERX camera outputs: 10GigE Vision® standard and over fiber, CoaXPress, GigE Vision®, Power over Ethernet, GigE with PoE, Camera Link®, U3V, CoaXPress and 3G/HD-SDI.
Product filed under:
Cameras & Smart Cameras and Software & AI Cameras & Smart Cameras and Software & AI
**For more camera features and spec sheets, please visit www.imperx.com/cmos-cameras/C6420/**

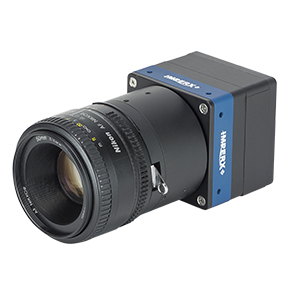

The C6420 is our most technically advanced, ruggedized, progressive scan digital camera in a compact design ideal for industrial, scientific, medical, aerospace, transportation and other applications. The C6420 incorporates a number of unique features tailored to reduce system complexity, maximize interface bandwidth, and expand the usable operational range.
The C6420 features the Sony Pregius IMX342 Global Shutter CMOS image sensor with a native resolution of 6464 x 4852 in an APS-C optical format delivering up to 17 frames per second with Camera Link® Full Power over Camera Link (PoCL®) output. CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.
The Imperx Cheetah line provides excellent image quality with Imperx proprietary processing. In addition, Imperx puts you in control and gives you full access to raw data without corrections. Using the simple, intuitive GenICamTM compliant user interface, you can quickly apply image corrections, if desired. The C6420’s flexibility, image quality, and speed make it suitable for a broad range of diverse and demanding applications, but “one size doesn’t fit all,” and Imperx can help optimize the camera to your exact requirements.
