Imperx, Inc. Product
Imperx manufactures ruggedized, high performance cameras for industrial applications. Combining extensive, easy-use features with the best CCD & CMOS sensors, Imperx cameras are available in resolutions from VGA-50 MP. Designed to perform to the highest standards in harsh environments including MIL STD 810G, the extended operating temperature is -40°C to +85°C with a MTBF > 660,000 hours @ 40°C. IMPERX camera outputs: 10GigE Vision® standard and over fiber, CoaXPress, GigE Vision®, Power over Ethernet, GigE with PoE, Camera Link®, U3V, CoaXPress and 3G/HD-SDI.
Product filed under:
Cameras & Smart Cameras and Software & AI Cameras & Smart Cameras and Software & AI
**For more camera features and spec sheets, please visit www.imperx.com/ccd-cameras/t6641/**

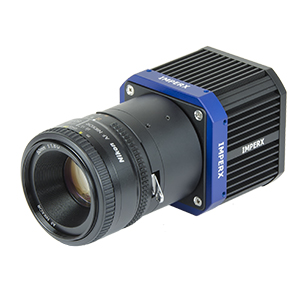

The T6641 is an advanced, compact, and durable interline CCD camera ideal for machine vision, surveillance, aerospace, aerial mapping, transportation and other applications. The T6641 incorporates a number of unique features tailored to reduce system complexity, maximize interface bandwidth, and expand the usable operational range.
The T6641 features the ON Semiconductor KAI-29052 CCD image sensor with a native resolution of 6576 x 4384, 43.3 mm diagonal, and enhanced Near-Infrared (ENIR) sensitivity. The camera delivers up to 4.7 frames per second and supports Camera Link® Medium and CXP-3 CoaXPress® outputs. The T6641 has excellent sensitivity, wide dynamic range and supports programmable image resolution, strobe outputs, trigger inputs, temperature monitoring, automatic exposure and gain control with multiple LUTs, and other high-value functions. It offers a roughly 2x improvement in NIR quantum efficiency and significant sensitivity improvement from 550 nm to 700 nm as compared to the T6640 camera. The camera is fully field upgradable and available in both Ruggedized and Industrial versions with optional forced air cooling.
The Imperx Tiger line provides excellent image quality with Imperx proprietary processing. In addition, Imperx puts you in control and gives you full access to raw data without corrections. Using the simple, intuitive graphical user interface, you can quickly apply image corrections, if desired. The T6641’s flexibility, image quality, and speed make it suitable for a broad range of diverse and demanding applications, but “one size doesn’t fit all,” and Imperx can help optimize the camera to your exact requirements.
