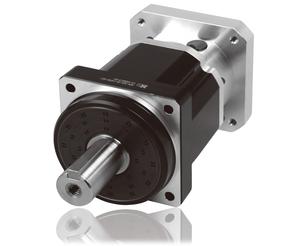

HPN Planetary Gearbox, Value Series Planetary Gear
HPN Harmonic Planetary® value series gearbox provides a low cost solution without the need to compromise on quality or performance. The HPN Series features helical gears for High –Torque, quiet performance and long life. Backlash of <5 arc minutes (for single stage) is maintained for the life of the gear. Large radial ball bearings support the output shaft for high load capacity. HPN Harmonic Planetary® gears are available with a smooth output shaft or a shaft with a key and tapped center hole. The HPN gearheads are available with short lead times and are designed to couple to any servo motor with our Quick Connect® coupling. This new value series of planetary gears carry the reputation for quality and reliability for which Harmonic Drive® products are known throughout the world.
- Helical Gearing
- Available in 5 Frame Sizes
- Peak torque: 9Nm to 752Nm
- Ratios, 3:1 to 50:1
- High Efficiency
- Backlash <5 arc-min (single stage) ,<7 arc-min (two stage)
- Fast Delivery
- Shaft output available with key and center tapped hole or with center tapped hole
