Harmonic Drive LLC Product

Gear Units - Mini

Model: CSF

Harmonic Drive LLC

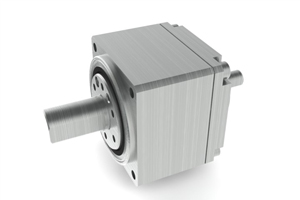

Image of Gear Units - Mini

Gear units are housed component gears combined with a precision cross roller output bearing & flange. Gear Units are very compact, robust and easy to use gearhead solution. Our Simplicity Gear Units are Non-housed component gearing combined with a precision cross roller output bearing. Simplicity Gear Units do not include the housing and output flange, which allows for even tighter integration into the customer’s housing or machine structure. Gearbox, speed reducers.

FEATURES:

  • Zero Backlash
  • Accuracy <1 arc-min
  • High torsional stiffness
  • High efficiency
  • Smooth operation
  • Robust cross roller output bearing

CSF-2XH
Designed to be coupled directly to a servomotor, the motor shaft is attached directly to the gearhead input element. Available with flange output or shaft output.

CSF-1U-CC
Featuring a shaft output, this gearhead is designed to be coupled directly to a high performance small servomotor.

CSF-1U-CC-F
Featuring a flange output, this gearhead is designed to be coupled directly to a high performance small servomotor.

CSF-1U
Featuring both an input and output shaft, this gearhead is easy to use.

CSF-1U-F
This gear features a flange output and shaft input.
