Güdel Inc. is the US subsidiary of Güdel Group, a global manufacturer of robotic automation products, systems and services. Güdel supplies linear motion modules, robot track motion units, gantry robots and components to OEM’s, systems integrators and machine builders serving the automotive, aerospace, logistics, heavy industrial and power generation industries. Güdel Inc. Is located in Ann Arbor, Michigan in a dedicated 45,000 square foot facility, providing North American customers with engineering, design, production, and, customer service support. Güdel Group was founded in 1954. Headquartered in Langenthal, Switzerland, today Güdel operates in 21 locations worldwide.
Product filed under:
Linear (Cartesian and Gantry) Linear (Cartesian and Gantry)

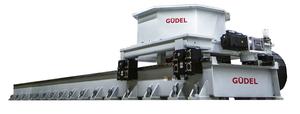

- The only standard linear motion product available on the market that can move an articulated robot with a payload over six metric tons.
- Available in standard lengths from 4 meters to over 100 meters, configured to protect for ease of future extension.
- In all steel uni-body construction that delivers exceptional stiffness and repeatability in a compact footprint.
- Specifically designed for the latest generation of heavy weight robots from FANUC, ABB and KUKA.
- Robot specific adaptor plates support the FANUC M-900iB family, the ABB IRB-8700 family, and the KUKA KR 1000 Titan family.
- The TMF-5 module can be configured with multiple independent drive carriages, and robot risers are available in 100mm increments.
- Sized and designed to handle the dynamics of robots in full payload, full speed and e-stop conditions.
- Built with Güdel components, including guideways, helical gear racks, gearboxes and the Güdel exclusive roller bearing cartridge system that delivers industry-leading MTTR.
- Automatic Programmable Lubrication System is a standard feature.
- Energy Chain is a standard feature, supporting customer supplied high flex cables.
- Güdel Application Support provides assistance in module sizing, gearbox selection and motor selection.
- Güdel Global Support has a team of qualified technicians available 24/7.
- Working as a seventh axis for robots, the TMF-5 opens new possibilities in processes.
