GIMATIC S.R.L. Product
Member Since 2022
Competence, experience and technical skills distinguish Gimatic in the EOAT market.
Product filed under:
Collaborative, Grippers, and Vacuum Collaborative, Grippers, and Vacuum
Collaborative vacuum gripping systems with 20mm thick foam and carbon body
Model: FCR-240-F20
The FCR series of vacuum gripping systems is ideal for pick-and-place operations and for handling products with different sizes, shapes, and porosities, making it suitable for a wide range of applications.
- The FCR series of vacuum gripping systems is ideal for pick-and-place operations and for handling products with different sizes, shapes, and porosities, making it suitable for a wide range of applications
- The version with calibrated holes is ideal for applications that require turning of the handled object by more than 45° and at least half of the surface of the gripper to be in contact with the object
- The compact size of 240x120 mm makes it ideal for filling packs
- Integrated EJ-LARGE-HF multistage cartridges to ensure high suction flow rate and low power consumption
- Ideal for collaborative applications thanks to its rounded shape and reduced weight. It can also feature an ISO-50 flange (MFI-A374-A) for direct mounting to collaborative robots
Other Products from GIMATIC S.R.L.
Pneumatic swivelling units
Pneumatic swivelling unit with rack-and-pinion drive and continuously adjustable rotation angle. Features large shaft ball bearings, through-hole pinion, and optional bumpers, shock absorbers, intermediate stopper, and magnetic sensors for enhanced control and durability.

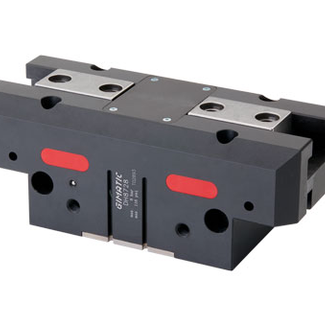

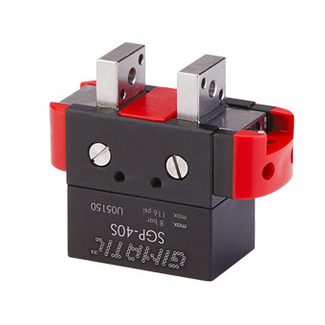

2-jaw parallel self-centering pneumatic gripper
Double-acting gripper featuring backlash adjustment, maintenance-free long-life reliability, and versatile mounting options. Available with optional magnetic sensors, spring closed/open configurations, and FDA-H1 food-grade grease for demanding industrial applications.
