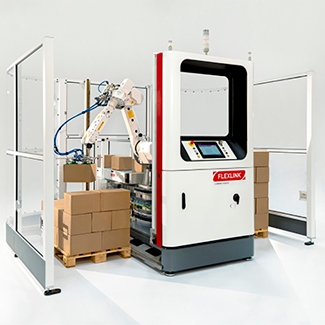

RI20 Palletizing Cell

FlexLink’s semi-open palletizing cell with an industrial robot arm is an easy-to-use unit can be up-and-running in just a few hours. It has an advanced safety system and two loading docks to permit a capacity increase of up to 5%.

The RI20 palletizer is suitable for palletizing closed boxes within fast-moving consumer goods industries. The unit includes enhanced safety features that allow a safe coexistence between the robot and operators on the production floor. The presence of operators in the safety area dynamically adjusts the speed of the robot instead of stopping it, reducing unnecessary downtime. Also, two pallet loading docks create a seamless pallet exchange that allows them to be filled in succession.

The compact design of the unit saves up to 40% floor space compared to heavy robot palletizers. The mainframe does not have to be attached to the floor and the RI20 can easily be moved using a forklift. The palletizing unit can be relocated in just a few hours, 50% quicker than alternative solutions, and can be used in multiple lines during the day.

The RI20 is also suitable for manufacturing sites and warehouses. The compact mainframe does not have to be attached to the ground. Therefore the RI20 can easily be relocated and used in multiple locations during a week. Due to an intuitive, web-based pallet pattern manager, there is no need for robot programming skills. Set up a new pattern in less than 10 minutes, or load an existing design with few clicks.

The RI20 has an intuitive, web-based pallet pattern manager and does not require robot programming.

The RI20 is available with several options: a rigid interlayer module, the Robot Config software (pallet pattern manager), a portable tablet, the remote assistance package, preventive info package, and data collection package.

Learn more about the RI20 by downloading the brochure here.
