Festo is a leading global manufacturer of pneumatic and electromechanical systems, components and controls for industrial automation, with 56 national headquarters serving more than 180 countries. For more than 80 years, Festo has continuously elevated the state of manufacturing with innovations and optimized motion control solutions that deliver higher performing, more profitable automated manufacturing and processing equipment. Our dedication to the advancement of automation extends beyond technology to the education of current and future automation and robotics designers with simulation tools, teaching programs, and on-site services.
Product filed under:
Vision Systems Vision Systems

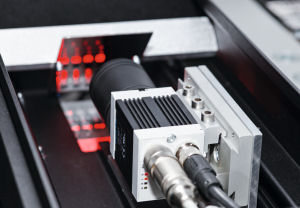

Pure flexibility: Machine vision systems by Festo
High-Speed-Cameras SBOx-M for function monitoring:
Innovative and cost-effective alternative to classic
high-speed cameras: supporting diagnostics and
commissioning as well as for function monitoring
of fast motion sequences.
• Up to 2100 frames/s
• Several systems can be networked and synchronised
via Ethernet
Intelligent camera systems SBOx-Q for quality inspection with a fully integrated PLC:
Smart cameras for location detection of parts and 100% quality inspection – even where there is
an enormous variety of part types and all sorts of inspections needed.
Stand-Alone application can be easily controlled
with the integrated PLC.
Main application examples:
• Completeness check
• Dimensional inspections
• Position and rotation detection
• Reading of 1D- and 2D code, OCR
Technical highlights:
• Integrated PLC according to IEC 61131-3
• Standardised software interfaces via Ethernet, CAN, 24 V I/O (EtherNet/IP, Modbus and other
protocols)
• C/CS-Mount or integrated Optics and lighting
Intelligent line-scan vision systems type Checkbox for orientation/quality inspection and sorting of small parts:
Scanning high speed vision systems for type, orientation and quality inspection of small
moving parts. Ideal for feeding applications.
Integrated PLC functionality for controlling the
entire feeding system with all necessary Interfaces
and precise Optics and Laser illumination
• Teach-in functionality, sorting functions
