FerRobotics Product
Member Since 2018
FerRobotics Compliant Robot Technology is a world leader in the development and sale of flexible, intuitive robotic equipment. As the leader in technology, our clients and business partners trust in our top-quality expertise and well-founded experience in flexible automation. Our patented Active Compliant Technology offers versatile solutions, makes robots develop a sense for perfection and applies to every task conceivable in surface treatment and contact-sensitive handling in the automobile, general industry and aerospace sectors. International users rely on our experience and advanced expertise who – like us – strive for perfection in order to achieve the highest standards of quality, economic efficiency and process reliability.
Product filed under:
End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling
POST-PROCESSING OF VISIBLE WELD SEAMS AND SOLDERED JOINT
The perfect seam in a single step: The most important factor contributing to a high-end quality product is a very fine and smooth grinding pattern. The better the ground finish, the better the final quality. Fully automatic post-processing with the ASK delivers exceptional top quality in a single step and eliminates post-processing.
Ideal for white car body and sheet metal processing
• Replaces manual work
• Makes the process safe
• Easy integration
• Compelling ROI
Extraordinary benefits
• Highly automated process
• 100 % personnel-free
• Top-class surface pattern
• No post-processing necessary
• Roughing operation eliminated
• Considerable savings on sanding material due to constant contact force
• Quality control fully integrated
Application examples
• Grind
• Brush
• Scale removal with fleece
• Separation cuts

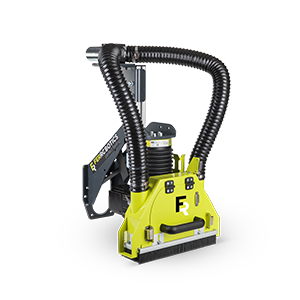

Ordercode: ASK/SET
Disc Grinder with BUS system, drive,
control, cables
| Stroke: | 35 mm |
| Force: | 100 N |
| Max. disc diameter: | 200 mm |
| Connection extraction: | ø38 mm |
| Data in: | Interbus LWL, ProfiNet LWL, DeviceNet LWL |
| Compressed air: | ø8 mm |
| Power supply: | 380 – 500 V AC |
| Control voltage: | 24 V DC |
| Supply embodiment: |
Full package including BUS system, drive, control, cables
|
Other Products from FerRobotics

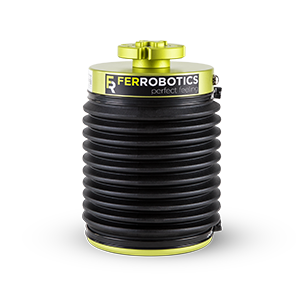

Active Orbital Kit
The AOK 501 is a finely tuned system package based on the Active Compliant Technology (ACT) and an orbital sander optimized
