FerRobotics Compliant Robot Technology is a world leader in the development and sale of flexible, intuitive robotic equipment. As the leader in technology, our clients and business partners trust in our top-quality expertise and well-founded experience in flexible automation. Our patented Active Compliant Technology offers versatile solutions, makes robots develop a sense for perfection and applies to every task conceivable in surface treatment and contact-sensitive handling in the automobile, general industry and aerospace sectors. International users rely on our experience and advanced expertise who – like us – strive for perfection in order to achieve the highest standards of quality, economic efficiency and process reliability.
Product filed under:
End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling

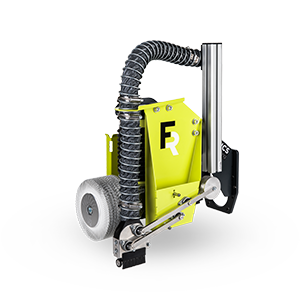

The AOK 501 is a finely tuned system package based on the Active Compliant Technology (ACT) and an orbital sander optimized
INTEGRATED SANDING SOLUTION FOR TEXTURE-FREE SURFACE TREATMENT
The AOK is a finely tuned system package based on the Active Compliant Technology (ACT) and an orbital sander optimized for robot use. This integrated complete solution automates the industrial sanding process with individual control of all process parameters: rotation speed, contact force and feed rate. The AOK offers the highest process quality from a single source. The system design is compact and light. The enormously durable sander is designed for industrial use and delivers twice the output of standard devices, 24 hours a day, 7 days a week.
Surface treatment: Sanding, polishing, cleaning, deburring
All materials: Steel, aluminum, titanium, magnesium, carbon, plastic, wood, ceramic, coconut fiber…
GLOBAL NOVELTY
Grinding package solution for Industry 4.0
• User-friendly industrial package solution
• Robot-compatible sander combined with all the benefits of the ACT system cooperation
• For all industries and materials
Quick, flexible, safe
• High performance and functionally optimized system for immediate integration
• Rapid job modulation directly by the end user
• Optimal functionality, productivity and process reliability
Control of all process parameters
• Contact force on the surfaces in an integrated system solution
• Feed rate of the robot
• Rotation speed of the orbital sander
Top quality
• Precisely even surface appearance thanks to a process-optimized package solution
• No post-processing
• The highest quality level 24 hours a day, 7 days a week
Compact and simple - Precise application of force - Devices are artificially conditioned
SPECIFICATIONS
| Ordercode | AOK/501 |
| Max. force (push/pull) [N] | 160 |
| Stroke [mm] | 35.5 |
| Dimensions [mm] | Max. 298 x 268 x 332 Bolt circle ISO 9409-1-80-6-M8 standard flange ø80 |
| Dead weight [kg] | ~ 11 |
| Power supply | • 24 V (DIN-track) • 380 - 500 V AC (frequency inverter • ø 8 mm air supply | Max. 7 bar, 30µm, ISO 8573-1 Kl.3 (oil & water free) • ø 6 mm operated air supply of brake of grinding disc Max. 7 bar, 30µm, ISO 8573-1 Kl.3 (oil & water free) |
| Max. speed [rpm] | 10,000 recommended 6,500 |
| Motor power (S1) [W] | 1,000 |
| Motor peak power (S2) [W] | 2,000 |
| Excentric stroke [mm] | 5 |
| Grinding disc | ø 150 mm (ø6“), optional ø125 mm (ø5“) |
| Air consumption [l/min] | 5 – 10 |
| Connection extraction [mm] | ø 38 - NW 40 |
| Ambient temperature during operation [°C] | +5 … +45 |
| Protection class | IP65 / if equipped with adequate filters |
