Exmek Electric is the professional manufacturer of a wide range of DC and AC electric motors in mainland China. With extensive experiences in the motor industry, we are capable of supplying you with more than 500 different types of high quality motion control components, mainly dc brush motor, brushless motor and stepper motor. Our manufacturing program is covering motors with the frame size from 30mm to 120mm, or with power rating from 5w to 1000w. Most of our motors are customized for high end industrial applications, such as pumps and compressors, household appliances, office business equipment, industrial automation, material handling equipment etc.
Product filed under:

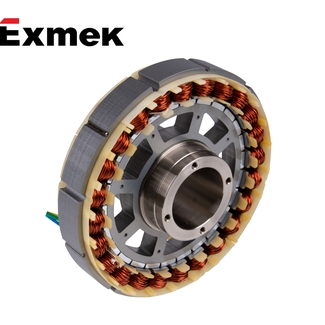

DC Brushless Motors and Motors & Drives DC Brushless Motors and Motors & Drives
Computer-optimized design maximizes torque density and performance. High overload capability. Low torque ripple. Low inertia. High control accuracy with direct drive.
General information
- Computer-optimized design maximizes torque density and performance.
- High overload capability.
- Low torque ripple.
- Low inertia.
- High control accuracy with direct drive.
Specifications
| Unit | MF180AS100 | MF180AS200 | MF180AS300 | |
| Winding Voltage | V | 48 | 48 | 48 |
| Rated Torque (continuous) | Nm | 6 | 10 | 20 |
| Rated Current | A | 5.3 | 8.8 | 17.6 |
| Rated Speed (max) | RPM | 300 | 300 | 300 |
| Peak Torque | Nm | 18 | 30 | 60 |
| No Load Speed | RPM | 400 | 400 | 400 |
| Cogging Torque (Max.) | Nm | 0.2 | 0.3 | 0.45 |
| Torque Constant (±10%) | Nm / A | 1.13 | 1.13 | 1.13 |
| Voltage Constant (±10%) | V / KRPM | 84 | 84 | 84 |
| Terminal Resistance (±12%) | ohm | 3.15 | 0.64 | 0.32 |
| Terminal Inductance (±30%) | mH | 5.0 | 1.2 | 0.6 |
| Motor Inertia | Kg-m2 | 25 | 40 | 72 |
| Motor Weight | Kg | 2.5 | 5 | 10 |
| Poles | 26 | 26 | 26 | |
| Stator length (L1) | mm | 15 | 28 | 56 |
| Rotor sleeve length (L2) | mm | 48 | 71 | 96 |
Company Profile
- Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
- Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
- Exmek Electric ---Registered Brand Name
- Business: Design and manufacture of motion control products and components
- Highly qualified personnel
- UL, CE, RoHS certification
- ISO 9001, ISO 14000
Company Capabilities
- Modern Motor Design and Manufacture
- Part Set Design and Manufacture
- Magnetic Design Software-Motorsolver
- Molding
- Shipping world wide
Why Exmek Electric
- Open for general discussion and questions
- Time to market or theatre of operations can be substantially reduced
- Talented team of engineers providing innovative technical solutions
- One stop "supplier" and complete sub-system
- Quality products provided at competitive low cost
- Ability to ship world wide
- On time delivery
- Training at Customer locations
- Fast service on return and repair results
- Many repeated customers
Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
