Euresys Product
Euresys is a leading and innovative high-tech company, designer and provider of image and video acquisition components, frame grabbers, FPGA IP cores and image processing software. Euresys is active in the computer vision, machine vision, factory automation and medical imaging.
Product filed under:
Frame Grabbers & Imaging Boards Frame Grabbers & Imaging Boards

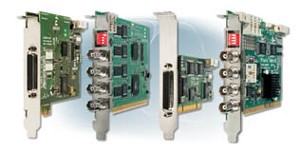

The Euresys Picolo boards are top-quality video acquisition boards compatible with standard PAL or NTSC cameras. They are dedicated to high-end applications in the fields of video surveillance and security, or entry-level applications in the field of machine vision such
The Euresys Picolo boards are top-quality video acquisition boards compatible with standard PAL or NTSC cameras. They are dedicated to high-end applications in the fields of video surveillance and security, or entry-level applications in the field of machine vision such as quality control and production monitoring. These boards faithfully digitize the video signal provided, offering perfect image fidelity to make the most of the data provided by a camera. Acquisition Standards Color (PAL, NTSC), monochrome (CCIR, EIA) Image size - Broadcast resolution: up to 720 x 488 NTSC / EIA, 720 x 576 PAL / CCIR - Square pixels: up to 640 x 488 NTSC / EIA, 768 x 576 PAL / CCIR - Frame, field, CIF, QCIF and custom image formats - Possible horizontal and vertical hardware scaler - Possible built-in arbitrary cropping to a rectangular Region Of Interest Image adjustments such as video contrast, brightness, color saturation and hue - NTSC only - Wide range of boards with various possible number of camera - Real-time acquisition from one to 16 cameras - Quick acquisition switching for up to 16 cameras Storage Image format storage: numerous color or monochrome formats are available including all popular color formats such as RGB, YUV, planar or packed. For a complete list, consult the bitmap image formats for Picolo boards Direct capture of individual frames as well as video sequences to PC memory
Other Products from Euresys
GigE Vision Host Software
Euresys/Sensor to Image offers a set of IP cores and a development framework to build FPGA-based products using the GigE Vision interface.
Picolo Alert PCIe
4x BNC connectors on the bracket, expandable to 16 with three [1203] VEB modules (sold separately) PCIe x1 bus Sixteen shared video decoders, 100/120 images per second (200/240 fields per second) Real-time acquisition from 4 cameras, fast switching between up to 16 cameras Independently-programmable
