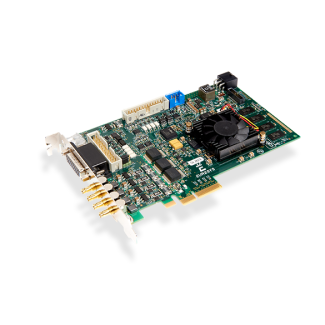

Coaxlink Quad 3D-LLE - Quad CXP-6 frame grabber with on-board laser line extraction for 3D profiling
Coaxlink Quad 3D-LLE
Quad CXP-6 frame grabber with on-board laser line extraction for 3D profiling
- Laser line extraction with zero host CPU usage
- Single and Dual Laser Line Extraction into a depth map
- Real-time generation of 16-bit 3D height maps
- Choice of algorithms: Maximum, Peak, Center of Gravity (COG)
- Precision: up to 1/256 pixel (with Peak and COG algorithms)
- Performance: 38,000 profiles/s from 1024 x 128 images. 76,000 profiles/s from 1024 x 64 images
- Memento Event Logging Tool
- More on Euresys - Frame Grabber for CoaXPress
