End of Arm Tooling and Tool Changers End of Arm Tooling and Tool Changers

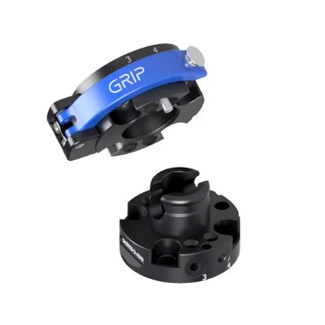

The SHS Connector is known for its blue hand lever, which makes for ease of use.
Features of the SHS Connector
The SHS Connector is equipped with integrated pneumatic feedthroughs, with electrical feedthroughs being optional. The Connector consists of a cylindrical bolt which locks the upper and lower assemblies. Closing the lever to lock, cinches the two assemblies together. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) and ensures that the tools are correctly aligned with the robot arm.
Technical excellence: What makes the GRIP SHS tool changer cutting edge:
- Integrated pneumatic feedthroughs
- Integrated mounting surface for energy feed-through
- Interface according to DIN EN ISO 9409-1
- High repeatability < 0.02 mm
- Durable - over 5000 change cycles without loss of repeatability
- Withstands high loads
- Tool-free thanks to integrated operating lever
- Intuitive operation: Can be opened and closed with one hand
- Low weight - made of high-strength anodized aluminum
- Locking pin secures hand lever against accidental release
