EDT (Engineering Design Team, Inc.) designs and manufactures low-cost, high-performance Camera Link® frame grabbers, simulators, and fiber-optic extenders (for tens to thousands of meters, depending on transceivers). We developed the first, and still the best, reliable long-range extenders. Our products work with desktops, workstations, and embedded systems running multiple camera models and modes (base through 80-bit), form factors (PCIe, PCI, PMC, cPCI), and operating systems (Windows, Linux). All products include free, cross-platform API and SDK, with excellent engineer-to-engineer support available.
Product filed under:
Camera Link and Frame Grabbers & Imaging Boards Camera Link and Frame Grabbers & Imaging Boards

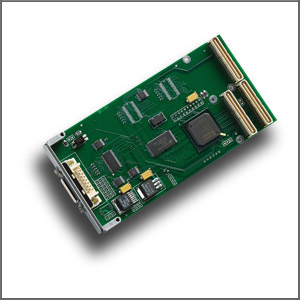

PMC DV C-Link is a high-performance Camera Link frame grabber for PMC. It provides an MDR26 connector to support one base-mode camera. Images of any resolution are captured in real time and sent via DMA to the host for processing. The board provides onboard region-of-interest control and supports data rates up to 220 megabytes per second, as supported by the host. Camera speed, resolution, and number of buffers are limited only by host bandwidth and memory. Line and frame triggering are supported over camera control lines. Included are software/driver packages for supported operating systems (Windows and Linux) and an SDK that includes C language libraries, examples, utilities, image capture and display GUI, camera configuration files, and Camera Link standard DLL for camera control.
- Fits in a PMC bus
- Supports one base-mode camera
- Sends images of any resolution to host via DMA
- Provides onboard region-of-interest control
- Supports data rates of 220 MB/s, as supported by host
- Supports line and frame triggering over camera control lines
- Includes SDK and drivers for Windows and Linux
PMC DV C-Link is ideal for virtually all PMC vision applications, including astronomy, aerial mapping, computer microscopy, intelligent traffic systems, manufacturing / inspection, remote scientific monitoring, medical and nuclear imaging, image archiving, machine vision, multimedia, security, and many others. The complete line of EDT Camera Link products includes frame grabbers, extenders, simulators, and systems.
