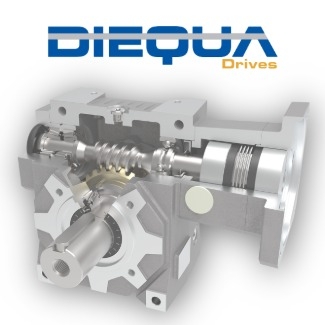

DieQua Precision Worm
Model: DPW35, DPW45, DPW55, DPW63, DPW75, DPW90, DPW110
Right Angle Servo Worm: High precision, torsionally rigid bellows coupling; flanges available to fit any servo motor.
| Feature | DPW 35-110 - Specifications |
|---|---|
| Range | 7 sizes (35-110) |
| Reduction Ratios | 10 ratios, up to 90:1 |
| Maximum Output Torque | 1500 Nm (13,275 in-lbs) |
| Housing Material | Diecast aluminum-magnesium alloy |
| Input & Mounting | High precision, torsionally rigid bellows coupling; flanges available to fit any servo motor. |
| Gears | Hardened and ground alloyed steel worms with unique dual-pitch; special bronze alloy ring gears for increased wear resistance. |
| Bearings | Floating ball bearing and oversize taper roller bearings for increased radial and axial capacity. |
| Seals | NBR / Viton |
| Lubricant | Full synthetic lubrication |
| Feature | DPW 125 - 200 Specifications |
|---|---|
| Range | 3 sizes (125, 165, 200) |
| Reduction Ratios | 9 ratios, from 5:1 to 90:1 |
| Maximum Output Torque | 7800 Nm (69,030 in-lbs) |
| Housing Material | Heavy-duty Cast Iron |
| Input & Mounting | High-precision, torsionally rigid bellows coupling; flanges available to fit any servo motor. |
| Gears | Hardened and ground alloyed steel worms with unique dual-pitch; special bronze alloy ring gears for increased wear resistance. |
| Bearings | Floating ball bearing and oversize taper roller bearings for increased radial and axial capacity. |
| Seals | NBR / Viton |
| Lubricant | Full synthetic lubrication |
Eliminate positioning errors with DieQua servo worm gearheads.
For applications requiring high precision and versatile output options, the High Performance Servo Worm series offers a compact, ultra-high-precision right-angle solution.
We also offer our Industrial Servo Worm Series, for a reliable, cost-effective option suitable for general automation and motion control.
